2D drawing of cross section AA' of electric power distribution system

Description

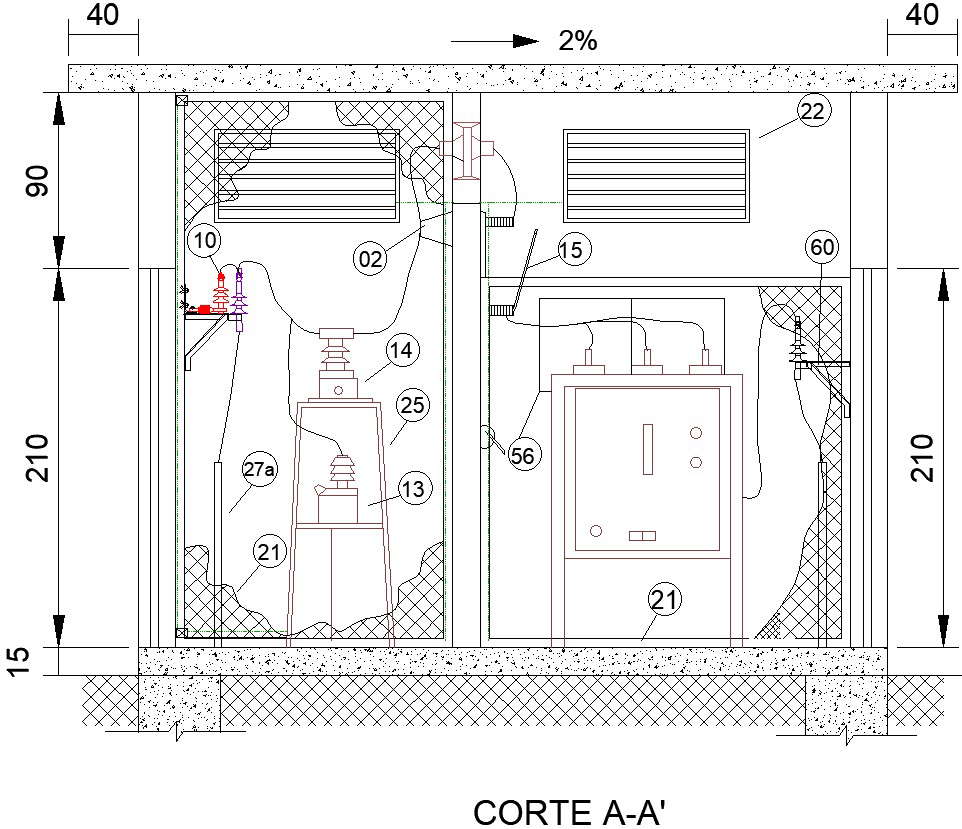

This architectural drawing is 2D drawing of cross section AA' of electric power distribution system. In this drawing there were given height is 330 and the slab thickness is 15. The measuring cubical must be closed up to the ceiling with masonry division and sealable screen frame. For more details and information download the drawing file.
