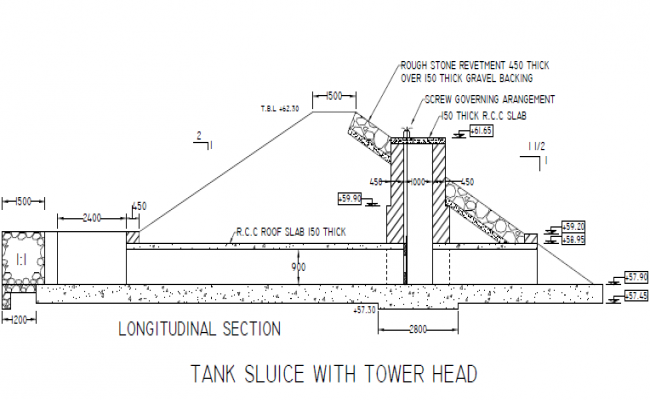

Tank sluice with tower head, longitudinal section with dimensions and proper specifications. The tower head has a 1m wide inner diameter, with a screw governing arrangement gate. The up stream side of the earthen bund is protected with rough stone revetment to prevent wear caused by waves.

Tank Sluice With Tower Head Drawing DWG

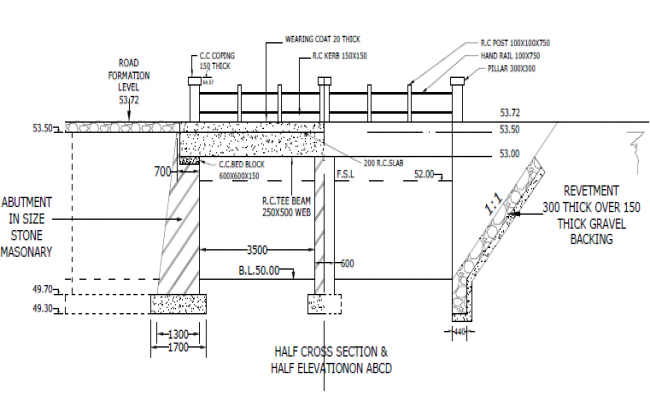

Drawing of a bridge with a single pier.  The drawing contains half plan at bottom and half plan at top, cross sectional elevation, longitudinal cross section. It has all specifications with proper dimensions and texts.

Bridge Drawing DWG File

View Muheeb Syed's CAD designs and architectural drawings. Browse 2 professional CAD files including house plans, elevations, and technical drawings on Cadbull.

Muheeb Syed

Muheeb Syed

2
