COMPLETE AS BUILT PLAN OF CHEMICAL PLANT PROJECT,INCLUDING ARCHITECTURAL, ELECTRICAL, AND STRUCTURAL DESIGNS

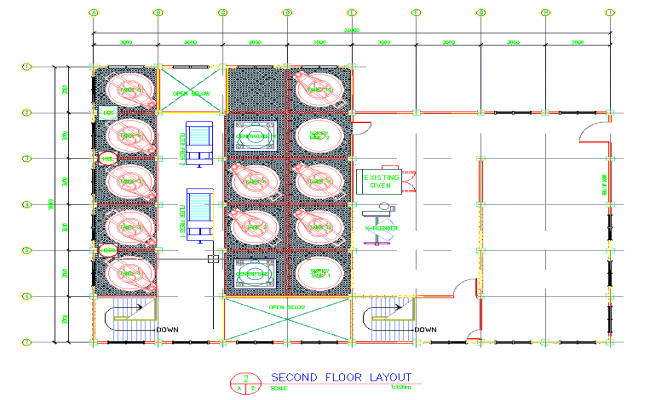

CHEMICAL PLANT

THIS IS THE COMPLETE AS BUILT PLAN OF SELENIUM PLANT WITH ARCHITECTURAL,STRUCTURAL AND ELECTRICAL DRAWINGS

SELENIUM PLANT

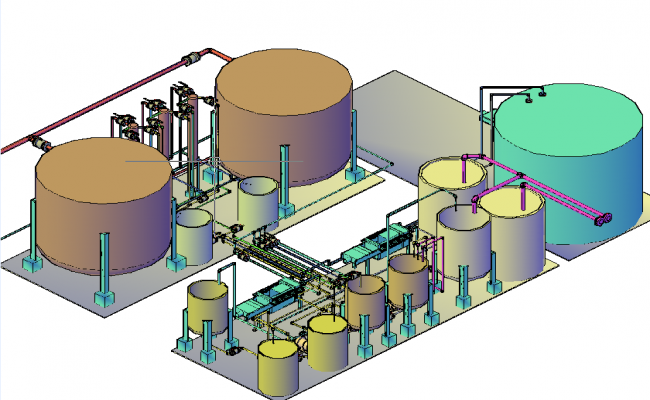

3d Design of scandium plant piping system.
3d Design of scandium plant piping system.
3d Design of scandium plant piping system.

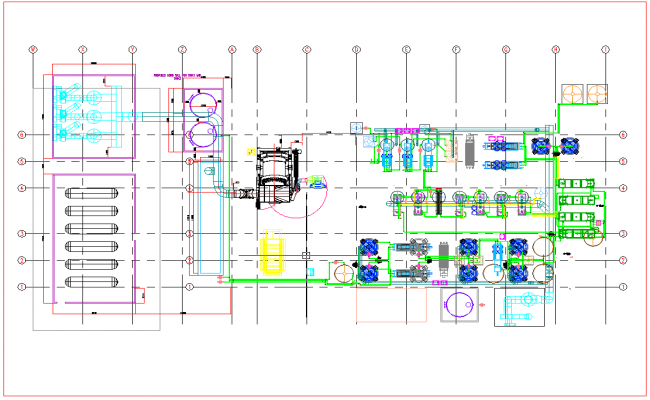

SCANDIUM PLANT LAYOUT

2D layout of pressure vessel with details and Nozzle schedule.
Sectio detail
Plan detail
Design data

PRESSURE VESSEL

This is as built layout of Te plant.
1. architectural drawing
2. electrical drawing
3. mechanical drawing
4. structural drawing

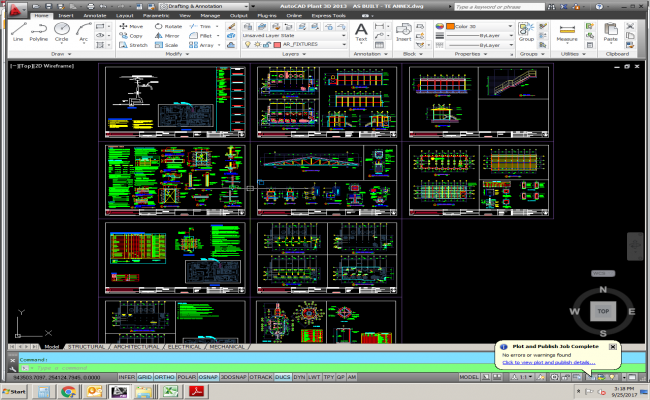

TELLURIUM PLANT AS BUILT DRAWING

BUILDING FOR RENOVATION PROJECT ASBUILT PLAN
1. 7 PAGES ARCHITECTURAL DRAWINGS
2. 3 PAGES STRUCTURAL DRAWINGS
3. 8 PAGES ELECTRICAL DRAWINGS
4. 3 PAGES MECHANICAL DRAWINGS
5.  3 PAGES PLUMBING DRAWINGS
6. 2 PAGES FALAR (MECHANICAL) DRAWINGS
7. 2  PAGES FALAR (ELECTRICAL) DRAWINGS

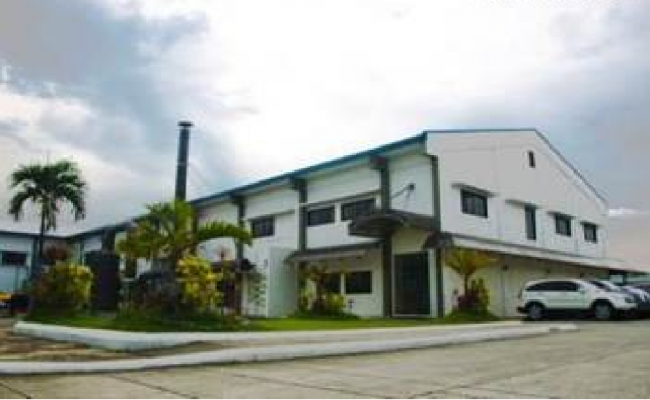

ADMIN OFFICE LAYOUT

	T2	T3	T4	T5	T6	T7	T8	T9 and T10	T11	T12	T13	SIR Column
Equipment Description	The acid leach solution storage tank is a closed vertical cylindrical tank used to contain solutions with pH equal or less than 0.5.	Waste solution storage tank is for the temporary containment of waste solution from different streams. A mixing mechanism is installed in the tank for treatment of the overall waste.	The strip slurry intermediate holding tank is a vertical cylindrical tank which will be used to contain caustic solutions  (100-200gpl NaOH)	The precipitation tank is used for crystallization of metal of interest. A mixing mechanism is installed in the tank to enable precipitation.	The stripping solution preparation tank is used for preparation of stripping solution in which agitation is needed.	The recycle stripping solution storage tank is used for containment of 2nd stripping solution. A heating mechanism is installed.	The stripping solution holding tank is used for storage of stripping solution in which agitation is needed.	The precipitation chemical daytank is a closed-top IBC tub. (2 units)	The regeneration chemical daytank is a closed-top IBC tub. 	The catch basin is an open-top IBC tub. 	The catch basin is an open-top IBC tub. 	SIR Column is used for loading of metal of interest from acid leach solutions with pH of atmost 0.5 and stripping said metal from the loaded resin using basic solution with temperatures not greater than 100 degrees Celsius.




Capacity	5 cu.m.	7 cu.m.	0.2 cu.m.	0.2 cu.m.	0.2 cu.m.	0.2 cu.m.	0.2 cu.m.	1.0 cu.m.	0.5 cu.m	0.2 cu.m.	0.2 cu.m.	0.03 cu.m (165mmX1372mm)
Diameter	2.0 m	2.2 m	0.6 m	0.6 m	0.6 m	0.6 m	0.6 m	1200 mm (L) x 1000 mm (W) x 1170 mm (H)	0.9 m	1000 mm (L) x 500 mm (W) x 500mm (H)	1000 mm (L) x 500 mm (W) x 500mm (H)	For design
Height	1.6 m	1.85 m	0.8 m	0.8 m	0.8 m	0.8 m	0.8 m		1.4 m
New Diameter	-	-	-	-	-	-	-	1.0 m	0.8 m	0.6 m	0.6 m
New Height	-	-	-	-	-	-	-	1.3 m	1.1 m	0.8 m	0.8 m
Computed Capacity	5.03 cu.m.	7.03 cu.m.	0.226 cu.m.	0.226 cu.m.	0.226 cu.m.	0.226 cu.m.	0.226 cu.m.	1.02 cu.m.	0.55 cu.m.	0.226 cu.m.	0.226 cu.m.
Thickness of tank	0.8 cm	0.8 cm	0.2 cm	0.2 cm	0.2 cm	0.2 cm	0.2 cm		0.4 cm
Material	Fiber Reinforced Plastic (FRP)	FRP	FRP	FRP	Stainless steel (SS)	SS	SS	High Density Polyethylene (HDPE)	FRP	HDPE	HDPE
Tank cover	Closed top	Open top	Open top	Open top	Open top	Closed top	Closed top	Closed top	Open top	Open top	Open top
Bottom type	Dish	Flat	Dish	Dish	Dish	Flat	Flat		Dish
Inlet diameter	2 in (sa cover, 1 in from "side" ng cover)		1 in (0.5 in from taas ng tank)
Outlet diameter	2 in (0.5 in from tank bottom)	2 in (0.5 in from tank bottom)	1 in (0.25 in from tank bottom)	1 in (0.25 in from tank bottom)	1 in (0.25 in from tank bottom)	1 in (0.25 in from tank bottom)	1 in (0.25 in from tank bottom)
Mixing Mechanism	-	Motor: 2HP, 220v, 60 Hz, 3ph	-	Motor: 2HP, 220v, 60 Hz, 3ph	Motor: 2HP, 220v, 60 Hz, 3ph			-	Motor: 2HP, 220v, 60 Hz, 3ph	-
	-	RPM: 200	-	RPM: 200	RPM: 200			-	RPM: 200	-
Impeller Type/Material	-	3-blade axial flow; Rubberlined steel 		3-blade axial flow; Rubberlined steel 	3-blade axial flow; Stainless steel 				3-blade axial flow; Rubberlined steel
Heating Mechanism	-	-	-	-		Jacketed mixing tank with heating coils outside	Jacketed mixing tank with heating coils outside	-	-	-
Steel Support Height	0.4 m	0.4 m	0.3 m	0.3 m		0.3 m	0.3 m	-	-	-
Others	With outlet, overflow, scrubber and manhole connections	With drain,overflow, vent and 	With outlet, overflow	With outlet, overflow, 		With drain, outlet, overflow, vent and manhole connections	With drain, outlet, overflow, vent and manhole connections	With drain valves, outlet, inlet, composite pallet, and cage	With drain valves, outlet, inlet, composite pallet, and cage	With drain valves, outlet, inlet, composite pallet, and cage	With drain valves, outlet, inlet, composite pallet, and cage
	Must follow European standards	Must follow European standards	Must follow European standards	Must follow European standards		Must follow European standards	Must follow European standards	Must follow European standards	Must follow European standards	Must follow European standards	Must follow European standards
Mode	Purchase	Purchase	Purchase	Purchase		Purchase	Purchase	Purchase	Purchase	Purchase/Fabricate	Purchase/Fabricate	Fabricate
