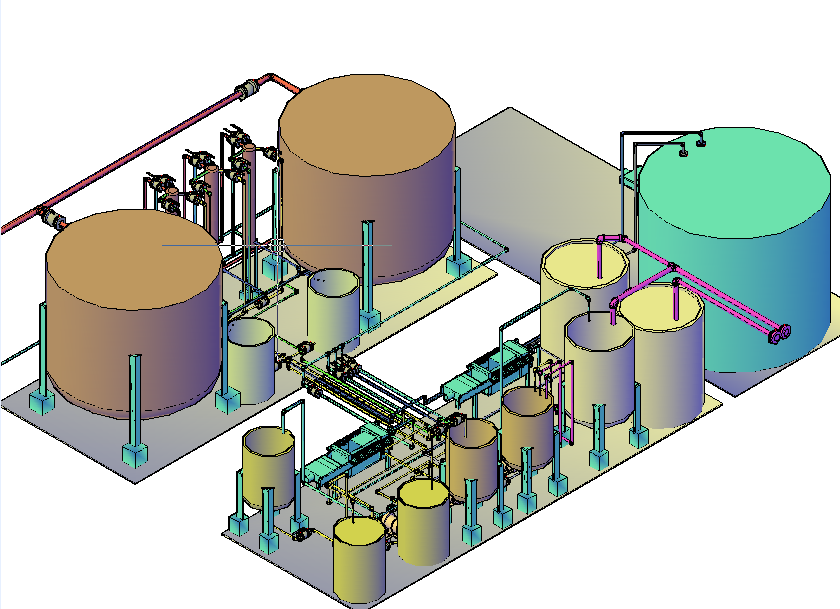

T2 T3 T4 T5 T6 T7 T8 T9 and T10 T11 T12 T13 SIR Column Equipment Description The acid leach solution storage tank is a closed vertical cylindrical tank used to contain solutions with pH equal or less than 0.5. Waste solution storage tank is for the temporary containment of waste solution from different streams. A mixing mechanism is installed in the tank for treatment of the overall waste. The strip slurry intermediate holding tank is a vertical cylindrical tank which will be used to contain caustic solutions (100-200gpl NaOH) The precipitation tank is used for crystallization of metal of interest. A mixing mechanism is installed in the tank to enable precipitation. The stripping solution preparation tank is used for preparation of stripping solution in which agitation is needed. The recycle stripping solution storage tank is used for containment of 2nd stripping solution. A heating mechanism is installed. The stripping solution holding tank is used for storage of stripping solution in which agitation is needed. The precipitation chemical daytank is a closed-top IBC tub. (2 units) The regeneration chemical daytank is a closed-top IBC tub. The catch basin is an open-top IBC tub. The catch basin is an open-top IBC tub. SIR Column is used for loading of metal of interest from acid leach solutions with pH of atmost 0.5 and stripping said metal from the loaded resin using basic solution with temperatures not greater than 100 degrees Celsius. Capacity 5 cu.m. 7 cu.m. 0.2 cu.m. 0.2 cu.m. 0.2 cu.m. 0.2 cu.m. 0.2 cu.m. 1.0 cu.m. 0.5 cu.m 0.2 cu.m. 0.2 cu.m. 0.03 cu.m (165mmX1372mm) Diameter 2.0 m 2.2 m 0.6 m 0.6 m 0.6 m 0.6 m 0.6 m 1200 mm (L) x 1000 mm (W) x 1170 mm (H) 0.9 m 1000 mm (L) x 500 mm (W) x 500mm (H) 1000 mm (L) x 500 mm (W) x 500mm (H) For design Height 1.6 m 1.85 m 0.8 m 0.8 m 0.8 m 0.8 m 0.8 m 1.4 m New Diameter - - - - - - - 1.0 m 0.8 m 0.6 m 0.6 m New Height - - - - - - - 1.3 m 1.1 m 0.8 m 0.8 m Computed Capacity 5.03 cu.m. 7.03 cu.m. 0.226 cu.m. 0.226 cu.m. 0.226 cu.m. 0.226 cu.m. 0.226 cu.m. 1.02 cu.m. 0.55 cu.m. 0.226 cu.m. 0.226 cu.m. Thickness of tank 0.8 cm 0.8 cm 0.2 cm 0.2 cm 0.2 cm 0.2 cm 0.2 cm 0.4 cm Material Fiber Reinforced Plastic (FRP) FRP FRP FRP Stainless steel (SS) SS SS High Density Polyethylene (HDPE) FRP HDPE HDPE Tank cover Closed top Open top Open top Open top Open top Closed top Closed top Closed top Open top Open top Open top Bottom type Dish Flat Dish Dish Dish Flat Flat Dish Inlet diameter 2 in (sa cover, 1 in from "side" ng cover) 1 in (0.5 in from taas ng tank) Outlet diameter 2 in (0.5 in from tank bottom) 2 in (0.5 in from tank bottom) 1 in (0.25 in from tank bottom) 1 in (0.25 in from tank bottom) 1 in (0.25 in from tank bottom) 1 in (0.25 in from tank bottom) 1 in (0.25 in from tank bottom) Mixing Mechanism - Motor: 2HP, 220v, 60 Hz, 3ph - Motor: 2HP, 220v, 60 Hz, 3ph Motor: 2HP, 220v, 60 Hz, 3ph - Motor: 2HP, 220v, 60 Hz, 3ph - - RPM: 200 - RPM: 200 RPM: 200 - RPM: 200 - Impeller Type/Material - 3-blade axial flow; Rubberlined steel 3-blade axial flow; Rubberlined steel 3-blade axial flow; Stainless steel 3-blade axial flow; Rubberlined steel Heating Mechanism - - - - Jacketed mixing tank with heating coils outside Jacketed mixing tank with heating coils outside - - - Steel Support Height 0.4 m 0.4 m 0.3 m 0.3 m 0.3 m 0.3 m - - - Others With outlet, overflow, scrubber and manhole connections With drain,overflow, vent and With outlet, overflow With outlet, overflow, With drain, outlet, overflow, vent and manhole connections With drain, outlet, overflow, vent and manhole connections With drain valves, outlet, inlet, composite pallet, and cage With drain valves, outlet, inlet, composite pallet, and cage With drain valves, outlet, inlet, composite pallet, and cage With drain valves, outlet, inlet, composite pallet, and cage Must follow European standards Must follow European standards Must follow European standards Must follow European standards Must follow European standards Must follow European standards Must follow European standards Must follow European standards Must follow European standards Must follow European standards Mode Purchase Purchase Purchase Purchase Purchase Purchase Purchase Purchase Purchase/Fabricate Purchase/Fabricate Fabricate
