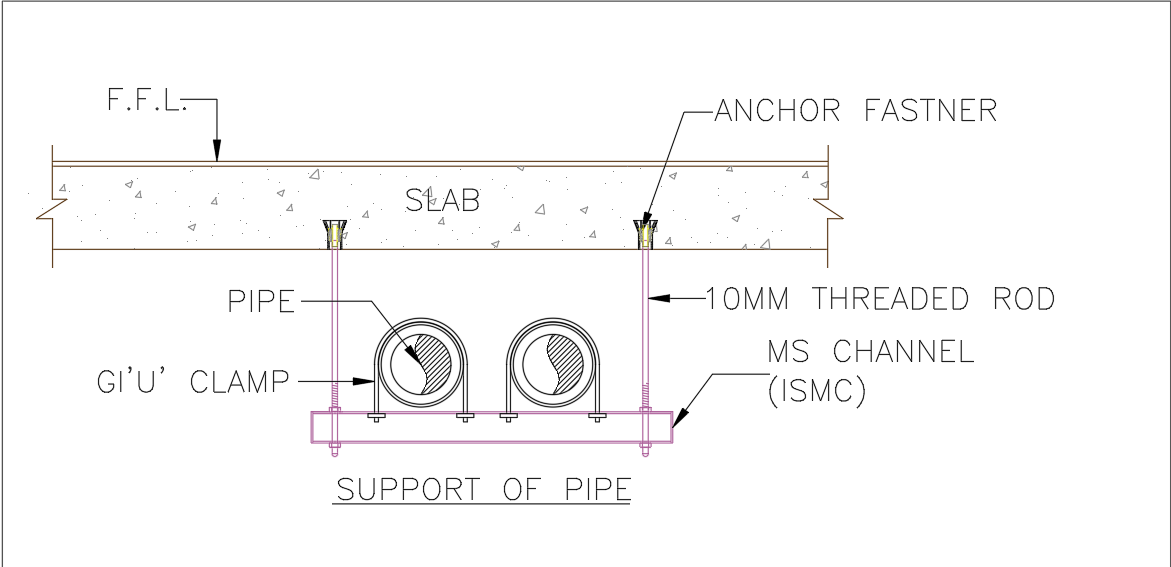

This pipe support detail is engineered for commercial building applications. It features a sturdy MS channel (ISMC), GI ‘U’ clamps, 10mm threaded rods, and anchor fasteners mounted to the slab. Designed for durability, this system supports plumbing, HVAC, and fire protection pipelines with stability and precision.
