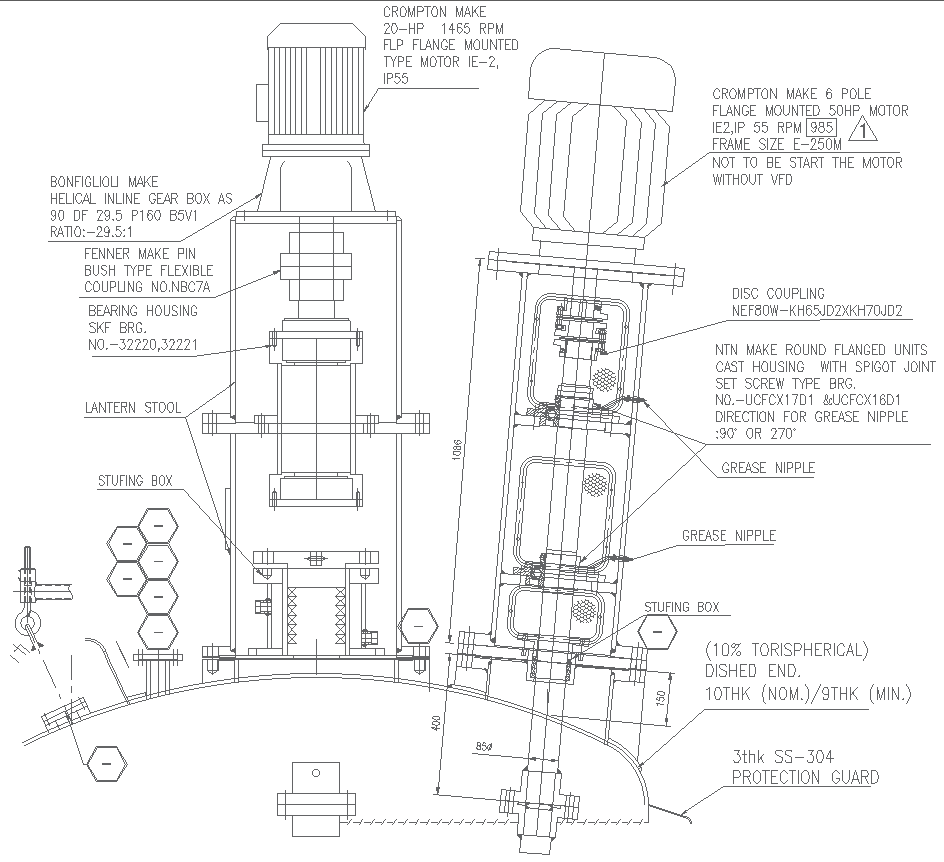

Detailed AutoCAD DWG file with technical layout of Helical gear box with Motor assembly. High-precision drawing that has all the details regarding the Crompton motor, Bonfiglioli Helical Inline Gear Box, NTN Round Flanged Units, etc. Further important elements such as flexible pin bush coupling, disc coupling, grease nipples, and so on, are also well emphasized for reference purposes in mechanical engineering. This file is suitable for professionals requiring detailed design schematics about the integration of gears and motors. This technical insight will provide quality and accuracy in construction, maintenance, and assembly.
