Typical details of strip footings in AutoCAD, dwg file.


Typical details of strip footings in AutoCAD, dwg file.

Description

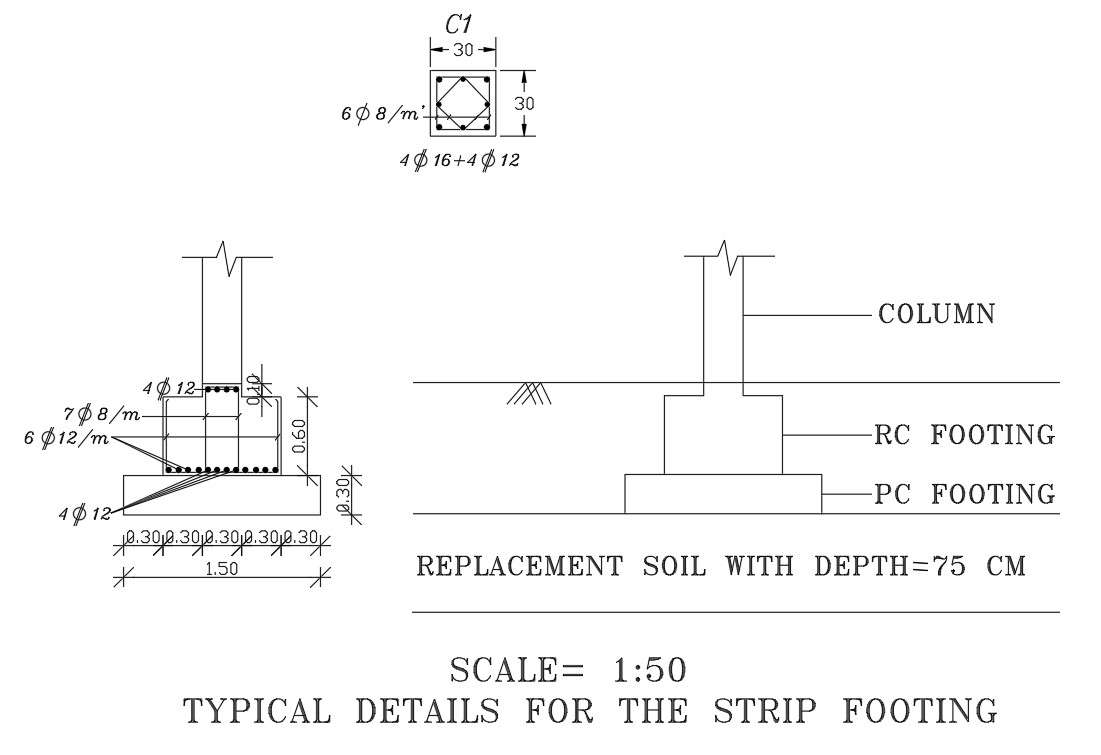

This Architectural Drawing is AutoCAD 2d drawing of Typical details of strip footings in AutoCAD, dwg file. A Strip Footing is a relatively small strip of concrete placed into a trench and reinforced with steel. The footing supports the load of the exterior walls and any interior wall that is load bearing or supports a slab such as for a bathroom. Strip footings can be used for both traditional timber and concrete floors.
