Balcony Railing detail Drawing.


 Balcony Railing detail Drawing.

Description

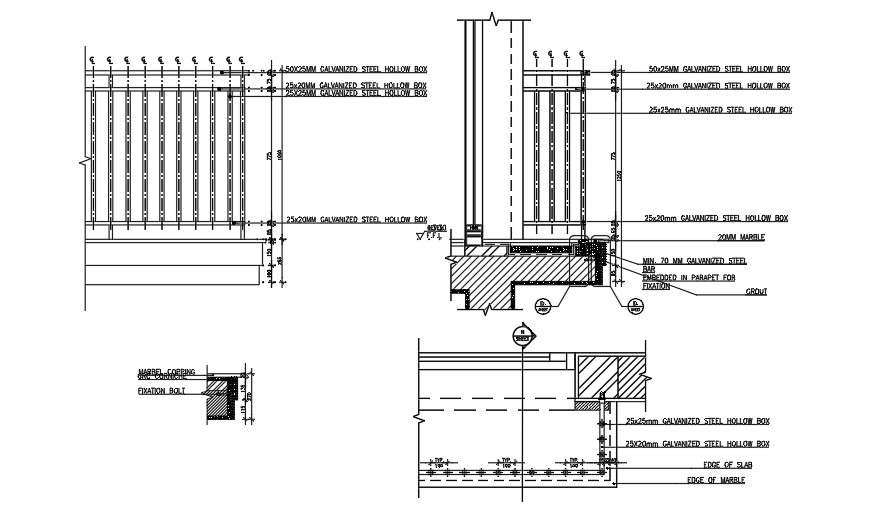

This Architectural Drawing is Detail drawing of balcony railing details. The national building code and Madhya Pradesh Bhoomi Vikas Adhiniyam specifies the height of a railing in a balcony, lobby or roof-top to be 1.05 metres (3.44 feet) from the floor-level. A balustrade is a railing supported by a series of balusters. Balustrades are sometimes short and ornamental parapets (low, protective walls) found on balconies and terraces. Generally speaking, the balcony should be a minimum of 4 ft (depth) by 9 ft (length) so you ideally have enough room for a small table and the ability to maneuver around. The word parapet (as mentioned in TypeIA's abswer) describes a wall-like structure that surrounds a balcony or roof. Another related term is Balustrade which refers to a series of pillars or poles supporting a handrail. Overview. A balcony slab is typically 1 foot thick, and its surface area is in accordance with the builder's desired size of the balcony. Balcony slabs are often unfinished, resulting in a gray color, though it's possible to paint them to a color of your choosing. For more details and information download the drawing file.




File Type: DWG File ID: 253428
