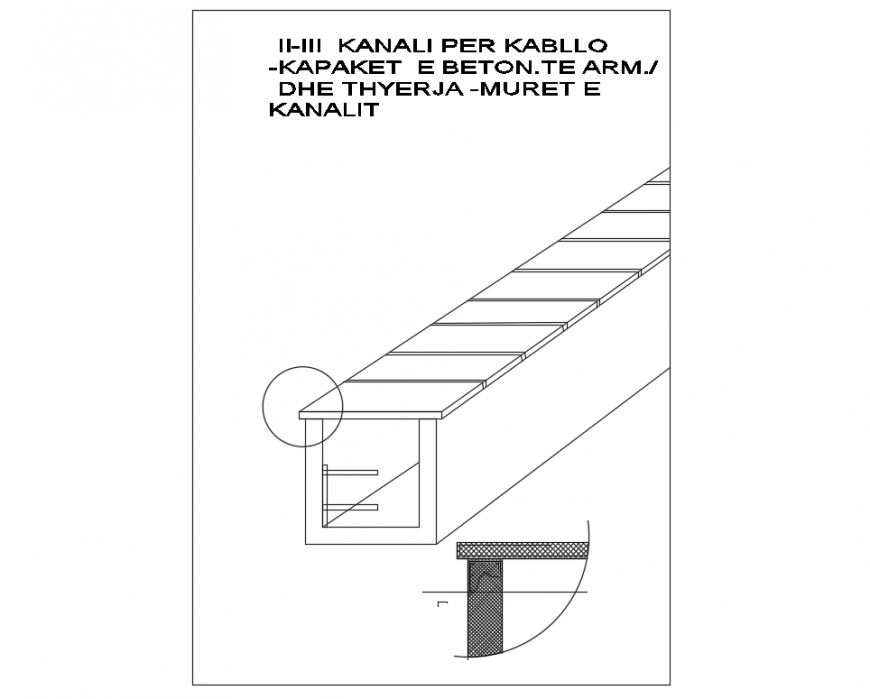

Concrete cover with cablet range of cable ducts and breaking-the canal dwg file


Description

Concrete cover with cablet range of cable ducts and breaking-the canal that includes a detailed view of waterproofing pa, waterproofing, slope formation layer, elastic expansion joint, aluminum joinery stud, angular anchor, aluminum joinery crosspiece, anchoring to allow movement by dilation, anchor screw, veneer, elastic gasket for glass, elastic sealing gasket, double sheet glass, Water-resistant concrete treatment, false ceiling of plaster plates, false ceiling fastening, profile, and much more of plumbing details.




File Type: DWG File ID: 133348

Uploaded by:


Eiz Luna
New-Zealand
