Staircase section and constructive details of house dwg file


Description

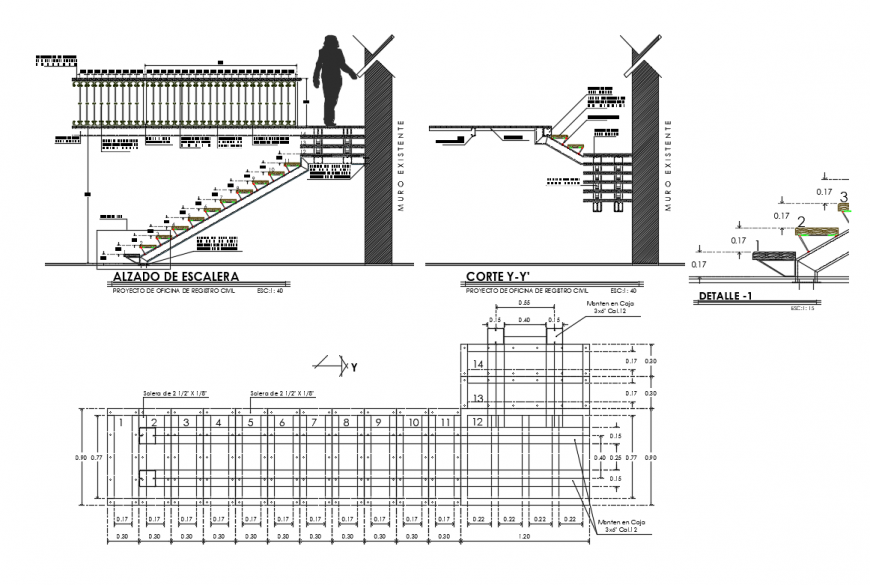

Staircase section and constructive details of house that includes a detailed view of staircase vest scenario, ceramic floor, horizontal section, tapizon novoflor corrugated beige, ceramic floor celima color blanco, foot print ceramic, novice glue, steps details, supportive wooden railing installation, base floor concrete plan, wall construction and much more of construction details.




File Type: DWG File ID: 109340

Uploaded by:


Presenting the broken author avatar :D Eiz Luna
New-Zealand
