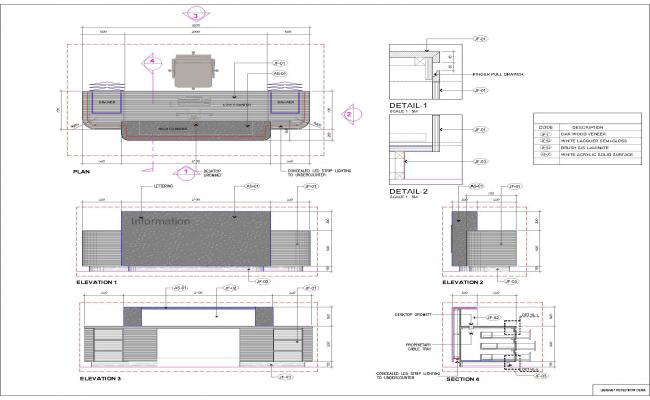

Library reception desk plan- sections- elevation and typical details for clear understanding and finishes details.

LIBRARY RECEPTION DESK

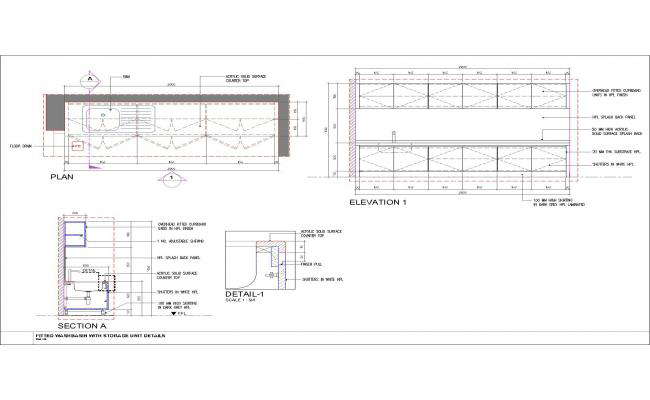

Fitted washbasin with storage unit plan- sections- elevation and typical details for clear understanding and finishes details.

FITTED WASHBASIN WITH STORAGE UNIT

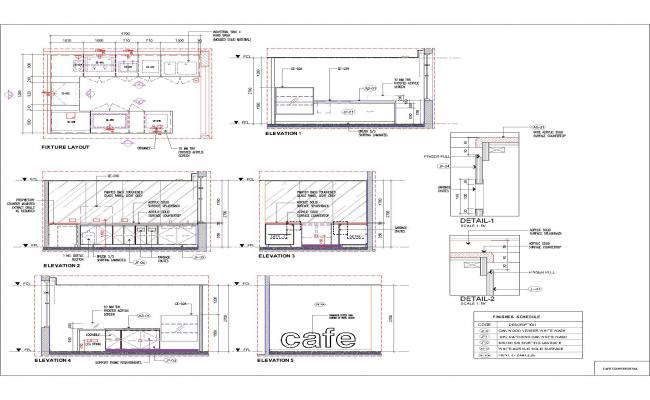

Cafe counter plan- sections- elevation and typical details for clear understanding and finishes details.

CAFE COUNTER

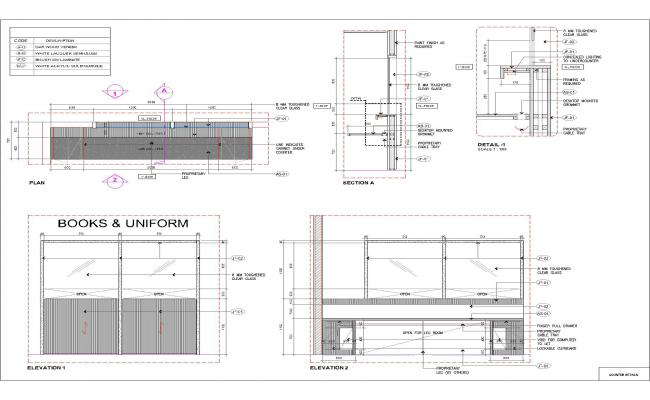

Books and Uniform counter for schools plan - elevation - section and typical details for manufacturing purpose.

COUNTER

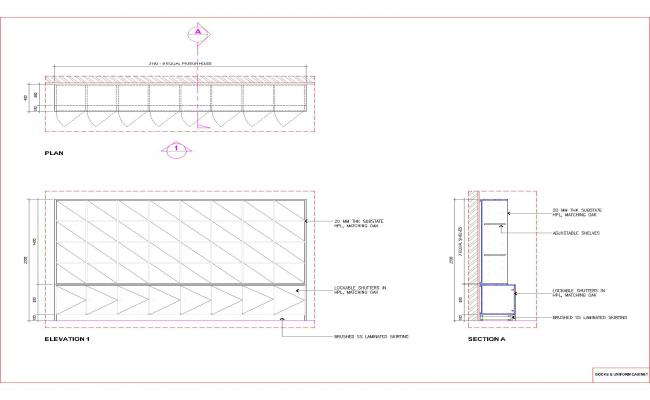

Books and Uniform cabinet plan- sections- elevation and typical details for clear understanding and finishes details.

BOOKS AND UNIFORM CABINET

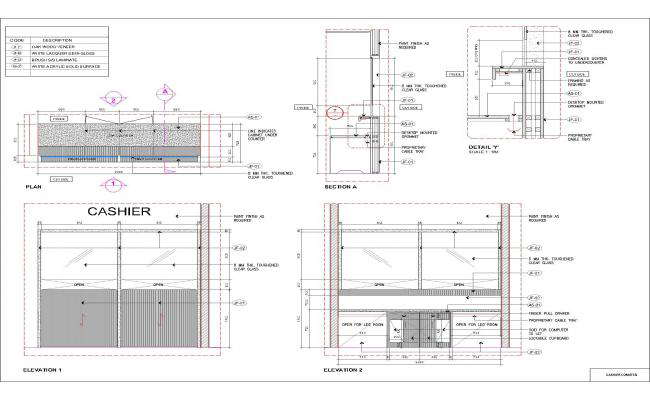

Cashier counter plan - elevation - sections and typical details for fixing and manufacturing purpose.

CASHIER COUNTER

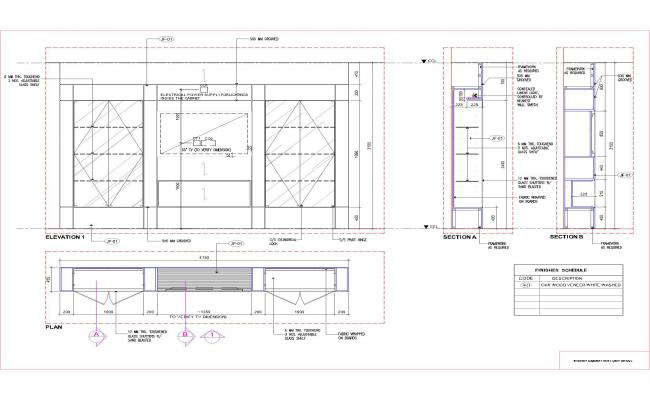

Trophy cabinet plan- elevation- sections and typical fixing details. and framing details as required finishes details as per requirement can change.

TROPHY CABINET

Pre area reception desk plan- elevation - sections and typical details and finishes as per requirement like veneer finishes, type of wood.

PRE DESK

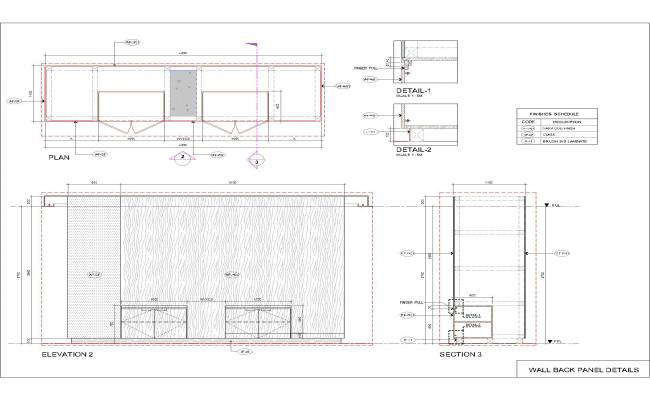

Wall Back Panel plan - sections - elevation and typical details and finishes of veneer and wood type of wood. fixing details for fixing on floor and wall with dimension.

WALL BACK PANEL

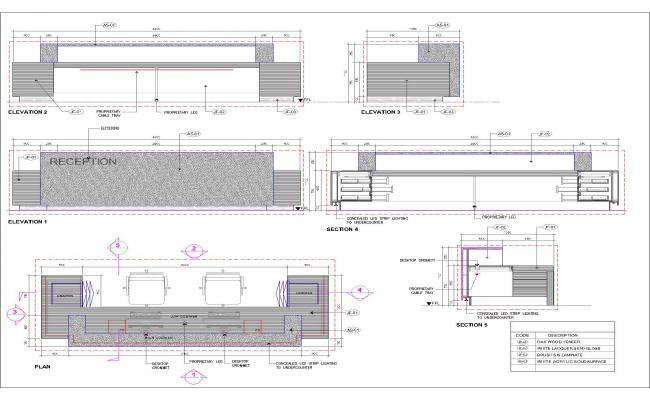

JOINERY WORK MAIN ENTRANCE RECEPTION DESK PLAN-SECTIONS AND STANDARD DETAILS FOR MANUFACTURING PURPOSE AND ADDITIONAL THINGS LIKE COMPANY LOGO CAN PLACE AS PER REQUIREMENT AND FINISHES REQUIREMENT AS PER THE REQUIREMENT CAN CHANGE, LIKE VENEER AND WOOD AND CLOUR WILL AS PER CHOICE CAN CHANGE.

RECEPTION DESK
