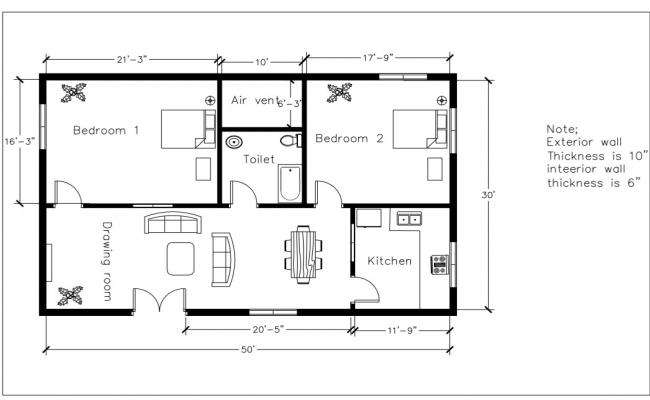

Dimensions are usually drawn between the walls to specify room sizes and wall lengths. Floor plans may also include details of fixtures like sinks, Bed room, Drawing  room, etc.

Floor Plan

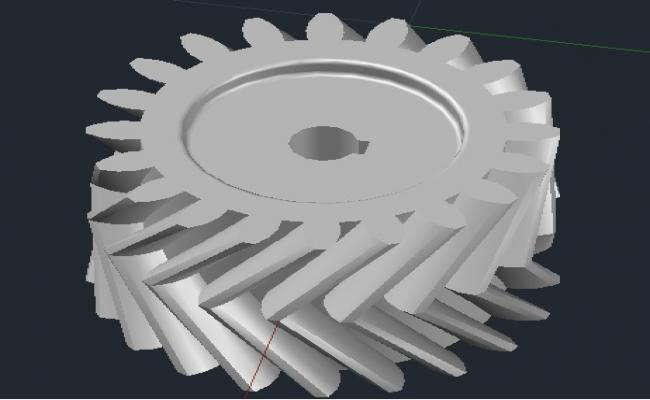

Like helical gears, they have the advantage of transferring power smoothly because more than two teeth will be in mesh at any moment in time. Their advantage over the helical gears is that the side-thrust of one half is balanced by that of the other half.

helical gears.

View sanjoy dey's CAD designs and architectural drawings. Browse 3 professional CAD files including house plans, elevations, and technical drawings on Cadbull.

sanjoy dey

sanjoy dey

3
