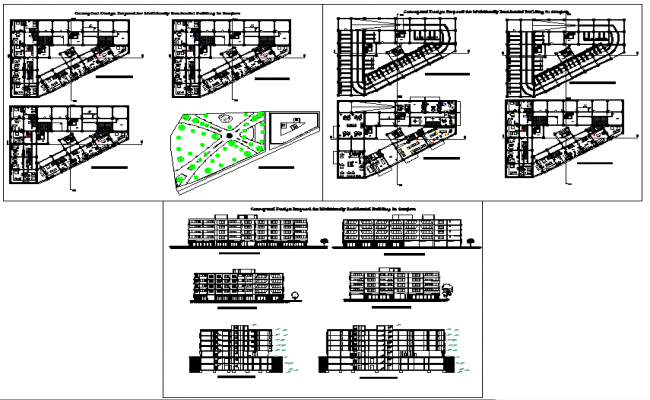

Residential building project with all characteristic plans, elevations and sections. This residential building contains three floors and one underground garage floor. On the underground garage ramp and 69 parking lots are included as well as stairscases and elevators which are leading towards the above floors. On the ground floor there is grocery market with additional facilities and toilets. The escalators and stairs are also placed in the this floor which goes towards the sencond floor where boutiques are existing. On the last floor, there are apartments.

Residential building

The city of Sarajevo has specific geomorphological and natural position and context through the river and mountain and hills surrounded by themselves. The area in that is project placed, contains differentiated character of urban value â€“ the majority of buildings that surrounds the park are actually high rise public ( such Al-Shidi city center placed closely behind the the park and residential building or Parlaiment Building) and semi â€“ public buildings such Countryâ€™s Museum etc.
   However the area itself uncover the overlapping of different historical phases through slightly or great alteration of urban fabric context or changes of environmental building structures.
   In this case, by reviewing over this urban landscape  fabric landscape, the necessity of green ares requires not even environmental and natural gain, but on the other hand the shape, context, aesthetic and order of one park is needed more than enough.
  Firstly, the aim of this kind of park, is to be fully functional and flexibile for every single person, who in some ways are â€˜consumingâ€™ the park. The shape is fairly interesting â€“ using the organic shape of paths and carefully ordered trees along those shape â€“ fully impacts and change overall urban context in better picture.
   The idea of the shape is orginal â€“ four paths starting from the edge of park which are elongated at the beginning, but they are coming slightly narrow at the center, which they are connected by themselves. The center is filled with fountain â€“ as the place of connecting, collecting and meeting of people.
   The residential building has good view toward this park, which is a big advance in every sense. For example, people who works everyday, who tired from traffic city jam, city air of cars, buses etc sometimes need fresh natural air and rest. That peace such kind of park can offer them, not going far away from current dwelling.


Apartment building

Very detailed house project. The plans, sections, elevations and detailed section in bigger scales are making this project full and completed. This modern and contemporary house possess beatiful architectural form and aesthically pleasing design. House has only two floors above and one below underground.

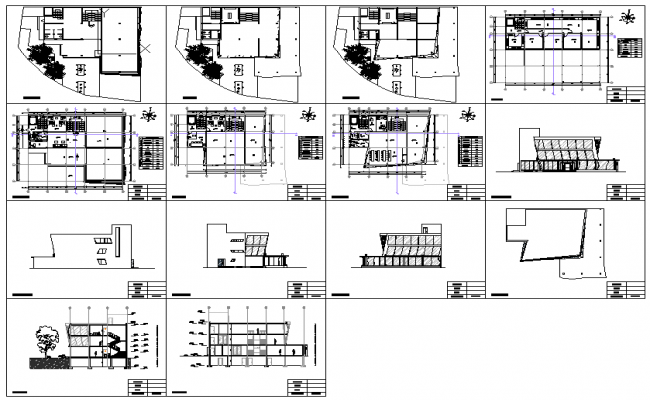

The concept of the design of museum is freedom in every aspect: in architectural and social. That architectural freedom concept is reflected into torsional and flat and rigid form and shape of the structural element such walls and curtain windows, and then transparency, visual and constructional quality. For the another aspect â€“ social it may be expressed the fact that it relies on architectural characteristics of concept in terms of: free accessability - anybody can drop in whenever they want, quality of architectural colour and moodness as well as the quality of stuff and quantity and affordness of exhibits and facilities.
   The most visible characterisic of this Museum is its unusual form. The site, surrounded by two streets, is accessible from multiple directions, which led to the actual plan of circularity. People can enter to the Museum through south direction which helps to facilitate easy access and a sense of closeness between the building and the city.
   The use of glass walls, inside and out, produces transparency and brightness. It also enhances a sense of encounter, an awareness of each other's presence, and unity among the visitors, whether they are at inside or outside of the building.
   Ground Floor
1. Forecourt / public entrance â€“ 50 m2
2. Lobby / public hall â€“ 42.4 m2
3. Currator's office â€“ 22.8 m2
4. Shop â€“ 6.7 m2
5. Toilet male â€“ 1.9 m2
6. Toilet female â€“ 1.9 m2
7. Private entrance â€“ 22.8 m2
8. Reception area â€“ 2.4 m2
9. Private toilet â€“ 2.7 m2
10. Virtual gallery â€“ 88.3 m2
11. Archeology and Numismaticism â€“ 92 m2
12. Public stairs â€“ 19.4 m2                             TOTAL AREA: 353.3 m2
First floor
1. Temporary exhibition â€“ 52.2 m2
2. Lobby / Public hall â€“ 42.4 m2
3. Administration office â€“ 22.8 m2
4. Conference room â€“ 16.20 m2
5. Private toilet â€“ 4.4 m2
6. Private hall â€“ 22.8 m2
7. Ethnology and History â€“ 72.2 m2
8. Public entrance / stairs â€“ 19.4 m2                   TOTAL AREA: 252.4 m2
Second floor
1. Lobby / Public hall â€“ 42.4 m2
2. Toilet male â€“ 4.7 m2
3. Toilet female â€“ 4.7 m2
4. Private hall â€“ 22.8 m2
5. Private toilet â€“ 4.8 m2
6. Dressing room â€“ 5 m2
7. Secretary â€“ 9 m2
8. Directorâ€™s office â€“ 13.4 m2
9. Lecture room â€“ 50.75 m2
10. Theater (audio-visual entertainment) â€“ 76.5 m2
11. Public entrance/stairs â€“ 19.4 m2                       TOTAL AREA: 253.4 m2
Basement
1. Private hall â€“ 22.8 m2
2. Storage â€“ 20.7 m2
3. Depot â€“ 92.5 m2
4. Sprinkler system â€“ 22 m2
5. Air conditioning â€“ 22 m2
6. Distric central heating system â€“ 21.3 m2    TOTAL AREA: 201.3 m2

1.5.2. Architecture of the Museum â€“ idea
- Complexity
- Sharp and curved lines
- Transparency and openness
- Pleasant and bright faÃ§ade with slight visible strips
- Contrast (black vs. white)
- Safety and security
- Arranged surroundings and external design
- Separated private and public parking lots


Museum

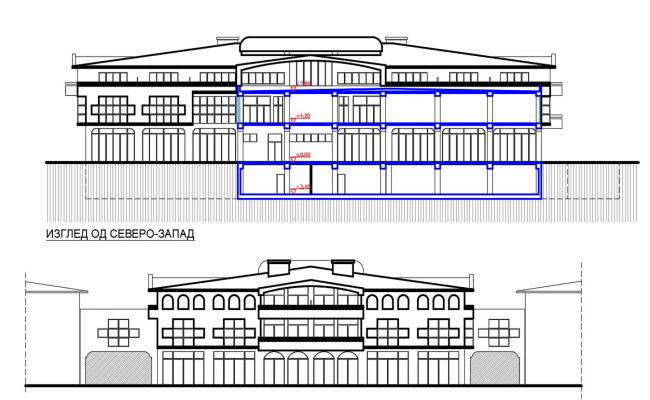

Mini congress center is located in Sarajevo, Bosnia and Herzegovina. Congress building has quite fair attractive location since it is located nearby governmental buildings in the town center. There are as well many other public buildings and nods like the old town called charshija or street of the buildings from austro-hungarian period of time, etc.

Congress center

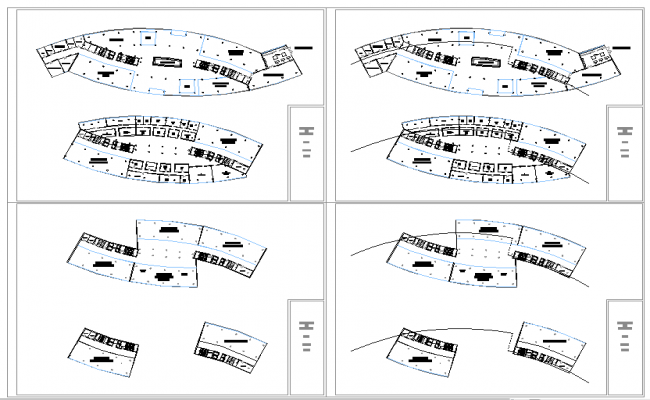

The concept of the of the structure of this library project is very unique and unusual, since it posesses the organic form and responds to the all functional necessities. The library has four floors. Library has the educational as well as entertaining character since its facilities may satisfy all that according to the number and size of the public and private spaces.

Libraray

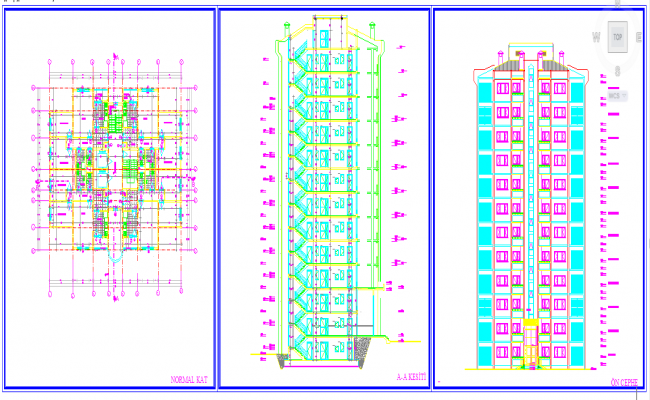

Residential building with one characteristic plan, one elevation or characteristic facade and one section as well. One characteristic apartment on one of twelve floors of this high-rise residential building generally contains following facilities: living room, toilet, bathroom, bedrooms, hall and balkon.

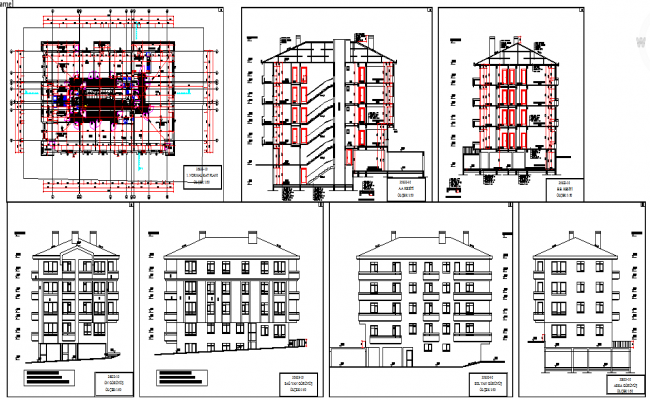

Residential building with one characteristic plan, all four elevations or characteristic facades and two sections as well. One characteristic apartment on one of four floors of this building generally contains following facilities: living room, toilet, bathroom, bedrooms, hall and balkon. The number of the facilities in one apartment certainly depends on the different size of apartments. Almost every single aparment has its own balkon.

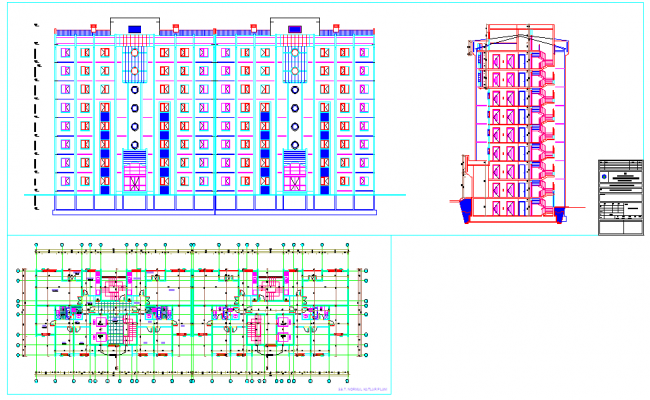

Residential building with one characteristic plan, one elevation or characteristic facade and one section as well. One characteristic apartment on one of eight floors generally contains following facilities: living room, toilet, bathroom, bedrooms and hall.

The house building includes: underground floor, ground and first floor. The position and location of the building is shown in the project. The underground floor contains: playing room, heating room, bathroom, two storages, hall, staircases and small swimming pool. The ground floor contains: Kitchen, salon, living room, porch, hall, staircases, guest room, dressing, toilet,bathroom and fireplaces. The first floor contains: four bedrooms, four bathrooms, four dressing rooms, workshop, hall and staircases.

house building

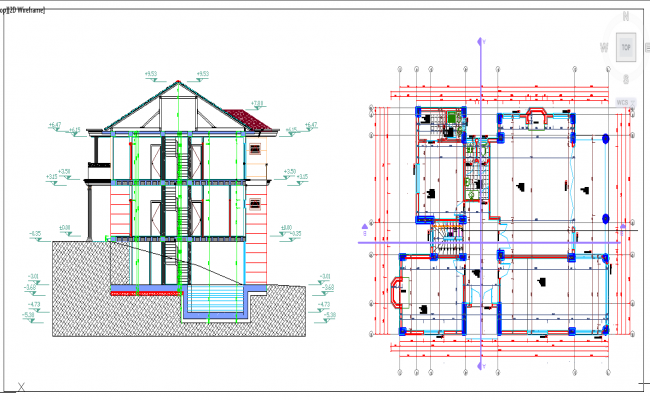

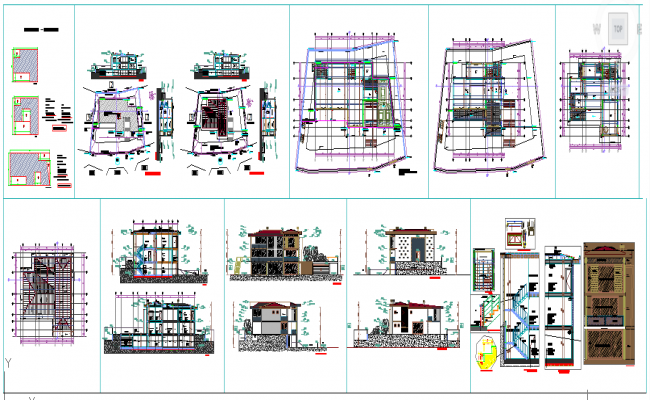

Very detailed residential building project which including not only the blueprints or plans of the house's floors and sections but the details of roof structure, foundation, doors and windows. This house project including: the plan of foundation, with every single zoomed detail of material used in the foundation structure. The house contains the following underground facilities: repository, boiler, corridor, laundry, kitchen and staircases as well. The ground floor facilities are: garage, living room, wc, kitchen, corridor and staircases. On the first floor following facilities exist: living room with dinning room, kitchen, wc, corridor and staircases. And on the last, second floor are included: four bedrooms, three bathrooms, dressing room, corridor and staricases.
