Beam sections, footing and structure details for house dwg file
Description

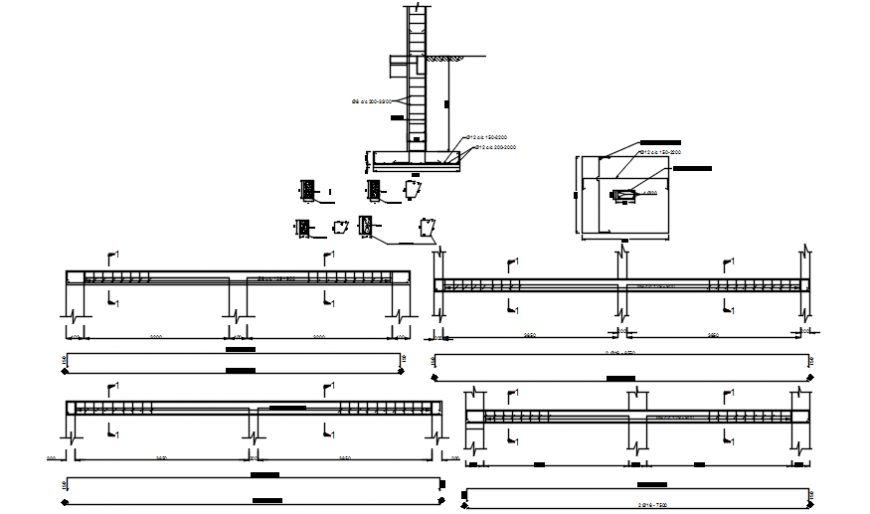

Beam sections, footing and structure details for house that includes a detailed view of continues slab details with typical beam details, typical solid slab and reinforcement details, typical beam foundation details with dimensions details, memory of material details, construction details and scale details, structure details and much more of beam details.
File Type:
DWG
Category::
Construction CAD Drawings, Blocks & 3D CAD Models
Sub Category::
Building Structure CAD Drawings, Blocks & 3D Design Models
type:
Gold
