Sprinkler or gutter drain plan detail dwg file.

Sprinkler or gutter drain plan detail dwg file.

Description

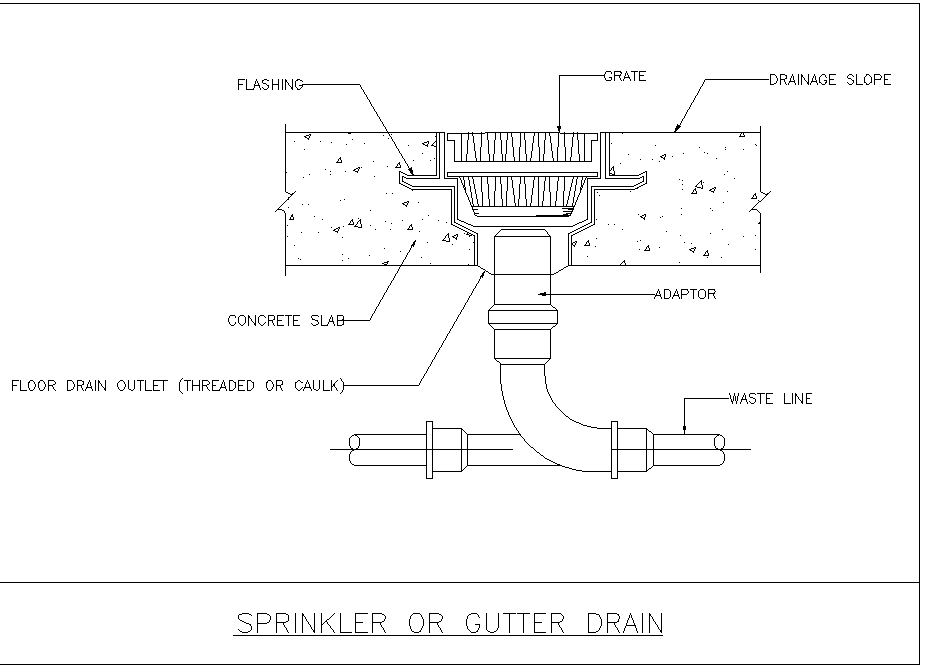

Sprinkler or gutter drain plan. The sections of a gutter drain with a detailing of a concrete slab, adaptor detail, drainage slope detail, great detail, outlet detail, etc.,

File Type: DWG File ID: 57091
