Truss constructive details dwg file

Description

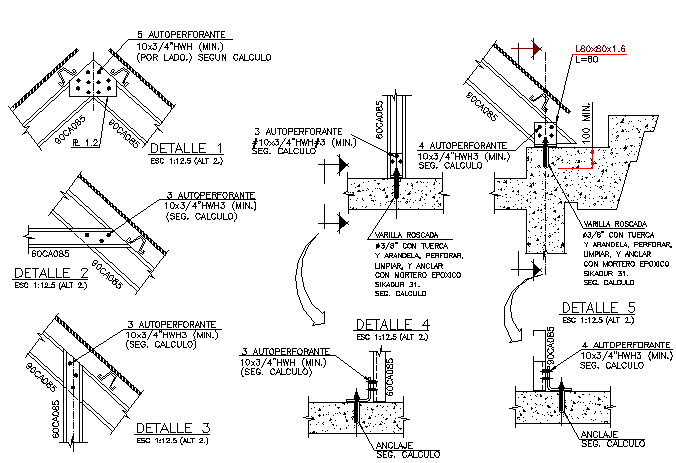

Truss constructive details dwg file. Truss constructive details that includes a detailed view of three auto perforate, according to calculation, threaded rod, nut and washer, perforce clean, anchor with motor and much more of truss details.

File Type:

DWG

Category::

Detail CAD Blocks & 3D CAD Models for Precision Design

Sub Category::

Construction Detail CAD Blocks & 3D AutoCAD Models
