Foundation pillar details with construction of two level house dwg file


Description

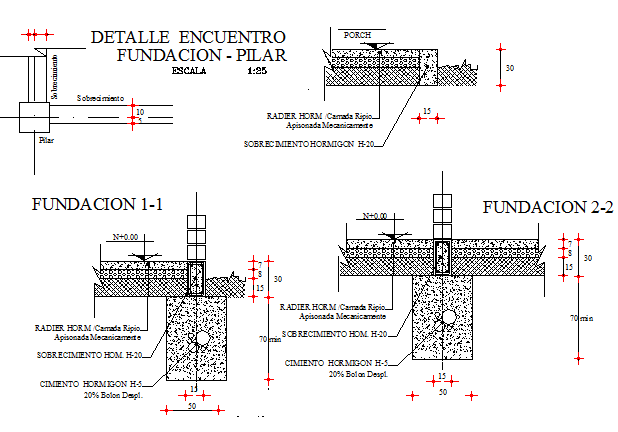

Foundation pillar details with construction of two level house dwg file Foundation pillar details with construction of two level house that includes a detailed view of pillar construction, construction joint, min to barrel of pipe, concrete base, concrete chamber rings, concrete surround, cement sand mortar and much more of house construction details.




File Type: DWG File ID: 34061

Uploaded by:


Vaishali
India
