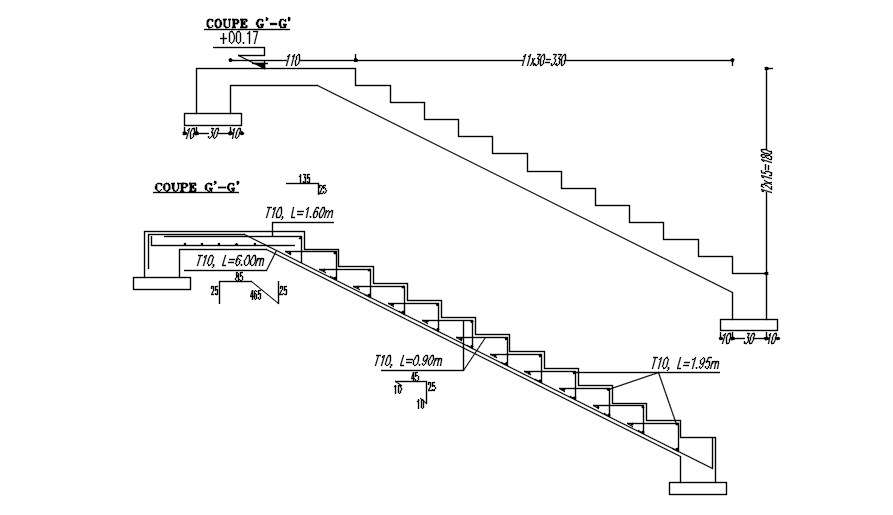

Cross section G of the stair with reinforcement details in AutoCAD 2D drawing, CAD file, dwg file
Description
This architectural drawing is Cross section G of the stair with reinforcement details in AutoCAD 2D drawing, CAD file, and dwg file. Rebars are needed at the upper fibers at both ends because the staircase is continued to slab at its base and top, causing negative bending moments to form at the supports. For more details and information download the drawing file. Thank you for visiting our website cadbull.com.
File Type:
DWG
Category::
Construction CAD Drawings, Blocks & 3D CAD Models
Sub Category::
Staircase CAD Drawings, Construction Blocks & 3D Models
type:
Gold
