Doors Opening and close details.


Description

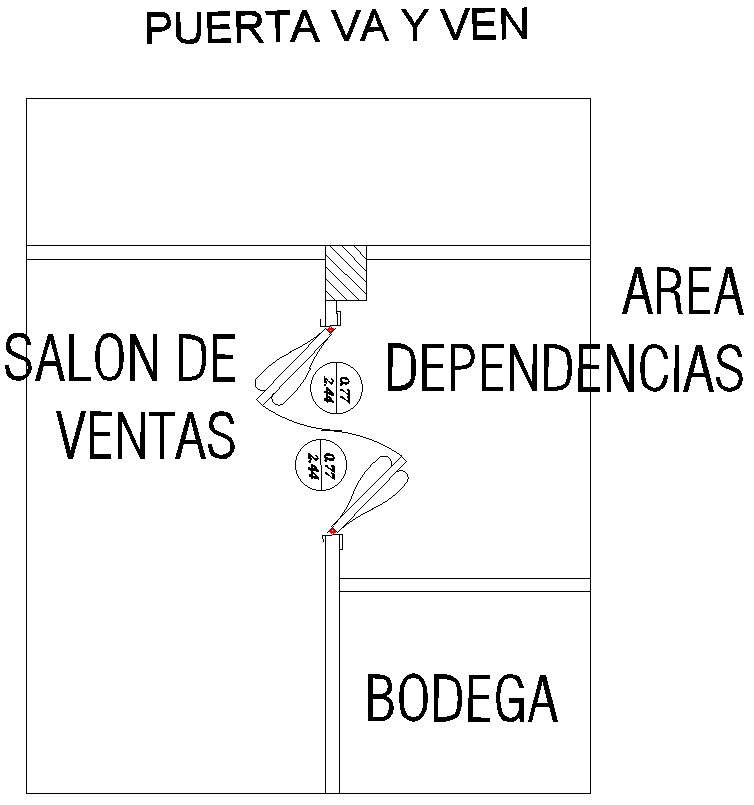

This Architectural Drawing is AutoCAD 2d drawing of  Doors Opening and close details. A door handle controls a door by manipulation of a latch – a mechanical fastener that joins two or more objects together. In this case, a latch connects the door with its frame and tends to embody a sliding bolt installed in the door and a receptacle in the frame. If the door is not accurately vertical when it's built, it would swing by itself due to its own weight. In this case, the door frame is slightly tilted to the side it opens on. You can check this by tying a heavy object and seeing how well the frame is aligned with the string. It's the hinges! For more details and information download the drawing file.




File Type: DWG File ID: 255069

Uploaded by:


Presenting the broken author avatar :D Eiz Luna
New-Zealand
