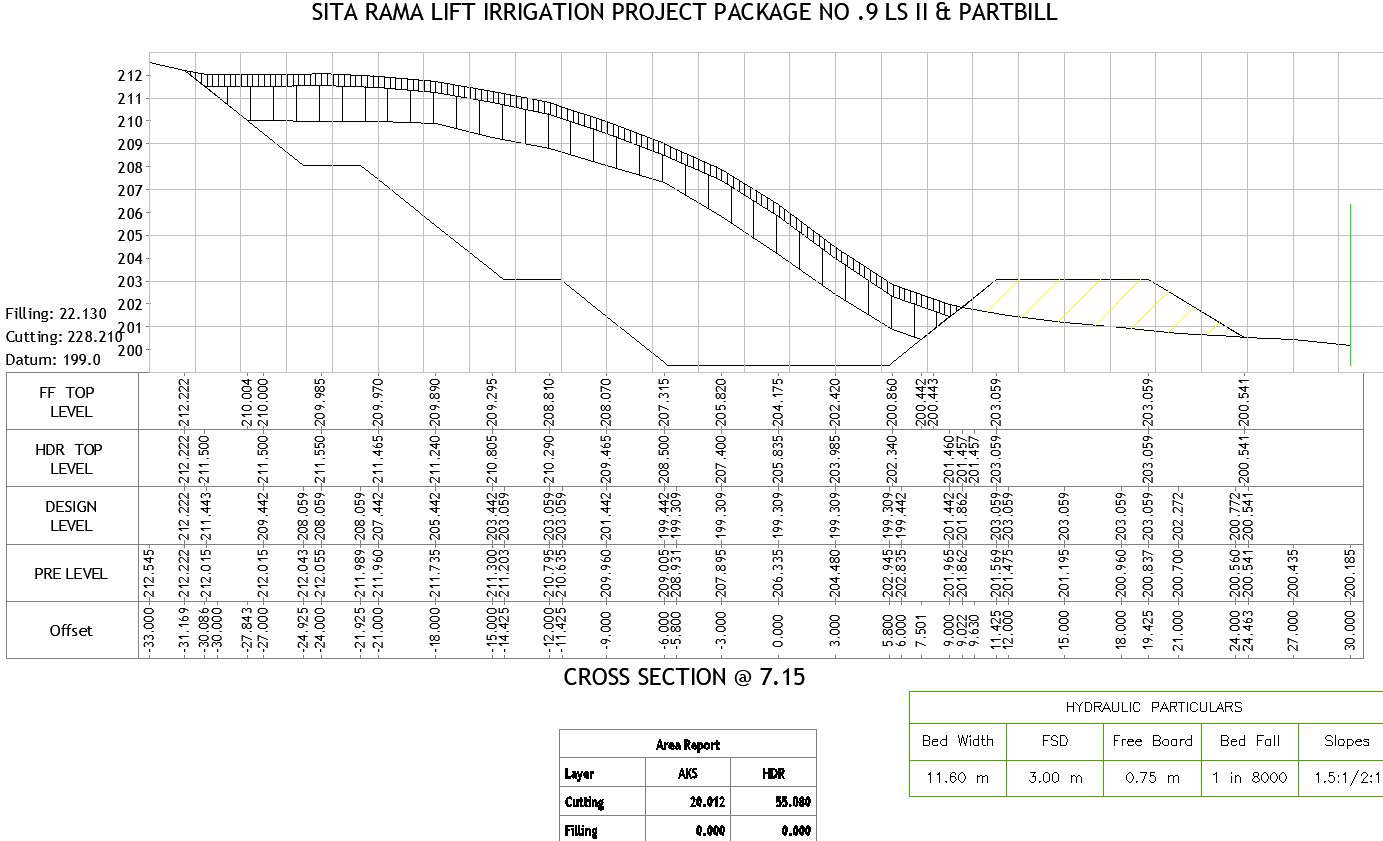

This architectural drawing is Cross section of lift irrigation project @7.15 with detailing. In hydraulic particulars there is bed width, FSD, free board, bed fall, slopes etc. are given in this drawing. There were cutting, filling and datum details are also given. There are also given area report of the irrigation project. In this drawing FF top level, HDR top level, design level, pre level, offset etc. are given with their details. Lift irrigation is a method of irrigation in which water is not transported by natural flow, (as in gravity-fed canal) but is lifted with pumps or surge pools etc. For more details and information download the drawing file.
