Residential building sectional plan

Description

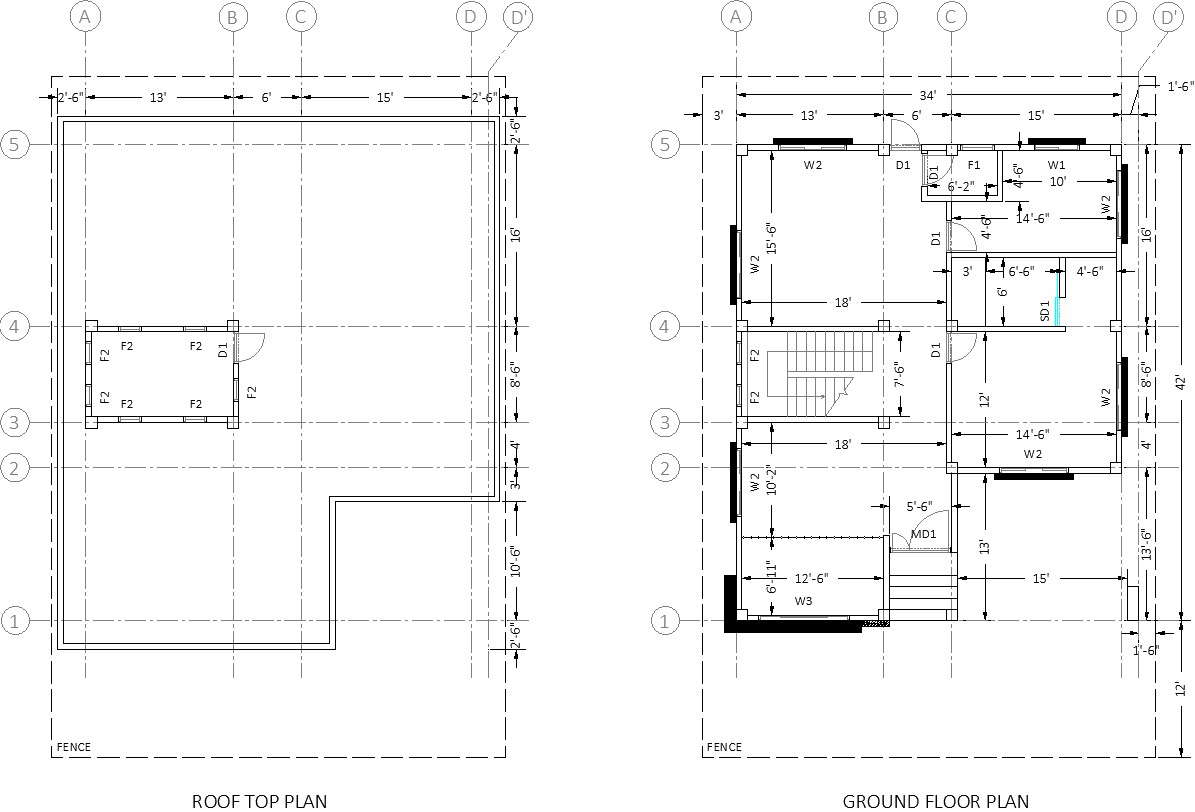

Here Residential building sectional plan shown ground floor sectional plan and roof sectional plan ,in  ground floor sectional plan show stairs and building plan layout including living room , kitchen , bedroom , storeroom , and attached toilet and bathroom also provided balcony  in roof sectional plan provide stairs and cabin ,A roof plan includes roof dimensions, specifications for roof pitch/slope, the placement of vents and drainage, and material specifications, A roof plan is also vital for any repair, fixtures, installations, renovations, or additional work being executed on an existing roof. for more details of Residential building sectional plan ,download this file.

icon

File Type:

DWG
icon

Category::

Structural Detail CAD Blocks & AutoCAD DWG Models
icon

Sub Category::

Section Plan CAD Blocks & DWG Drawing Models
icon

type:

Gold
