Detail connection roof with stone wall Design

drawing

Description

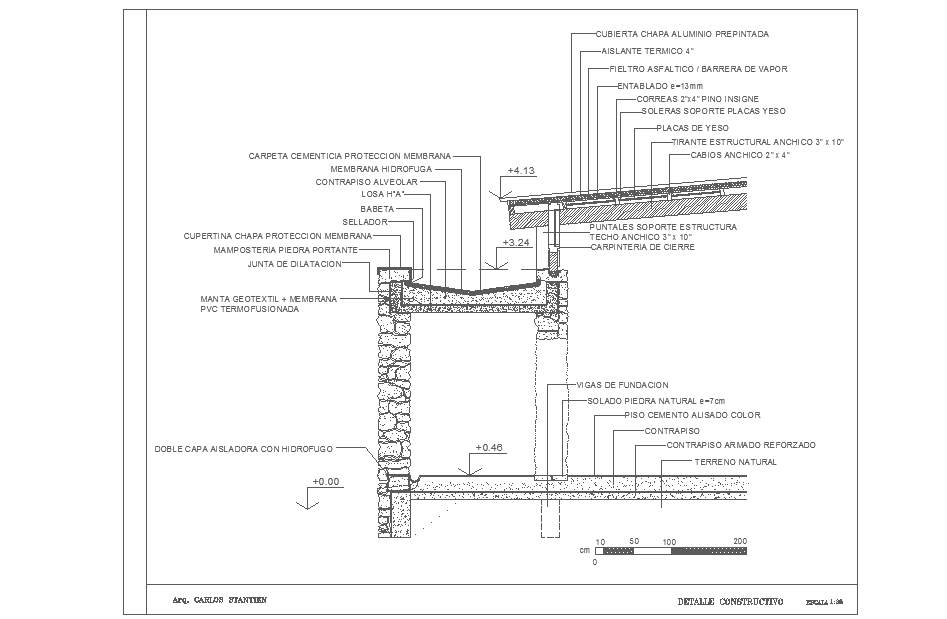

Detail connection roof with stone wall design. cement membrane, punts support structure ceiling roof 3 "x 10", structural anchor strap 3 "x 10", colored floor cement floor, double isolated coating with hydrolic cover.
