Structure Detail & Section detail

Structure Detail & Section detail

Description

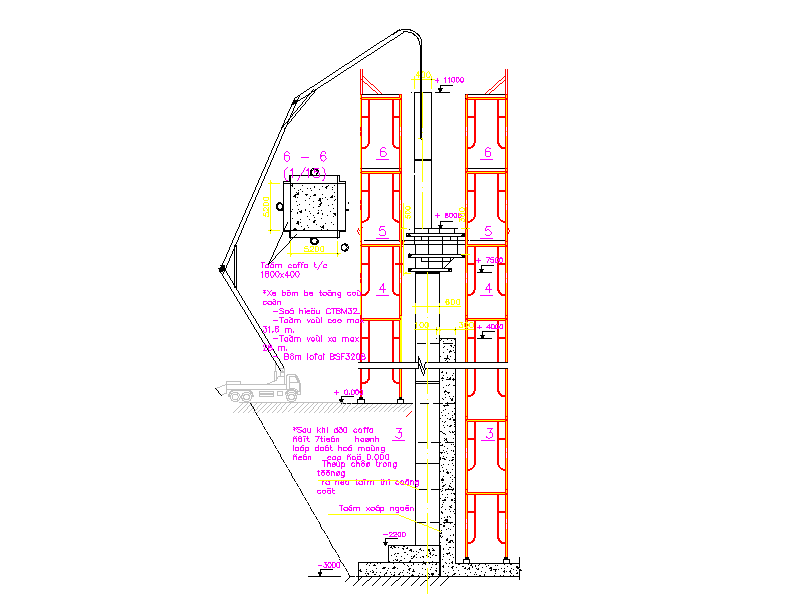

Structure Detail & Section detail. After a coffa of 7 coil cracking up to 0.000 high, Bean pump is required, Scale CTBM32, Height up to 31.6 m, Maximum distance 28 m, Battery type BSF3208

File Type: DWG File ID: 18060
