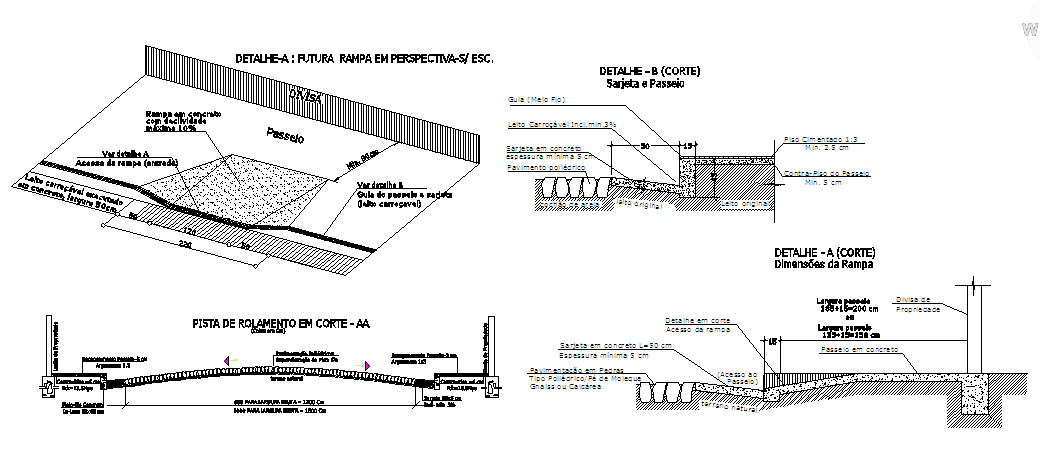

Layers of Road Construction. Concrete gutter L = 50 cm Minimum thickness 5 cm, 800 for gross width = 1200 cm, Bed Car table Incl.min.3%, Floor polyhedral, Concrete walkway etc detail.
