Electrical Dragging and Storage Cabinet Layout for CAD File
Description

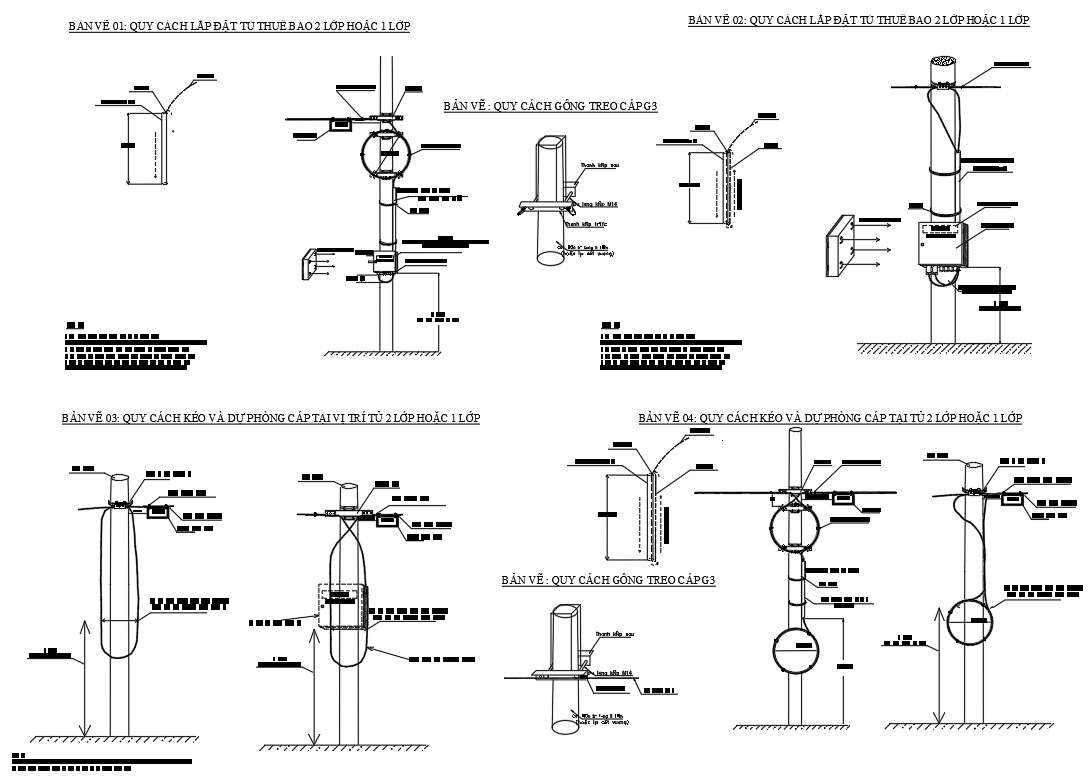

Draging and standby cabinet or layer cabinet given in the form of 2D Autoad DWG drawing file. Class cabinet position, cabinet layer, specification for installing, specification of hanging cables were prepared. At the location of a 2-layer or 1-layer cupboard (with the "drop and go" cable), the cable from the intended position of the cabinet / box from the bottom of the cable-box must be cut for an additional 3.5m. Thank you for downloading the file from our website.
File Type:
3d max
Category::
Electrical CAD Blocks & DWG Models for AutoCAD Projects
Sub Category::
Building Layout & Design CAD Blocks for AutoCAD Projects
