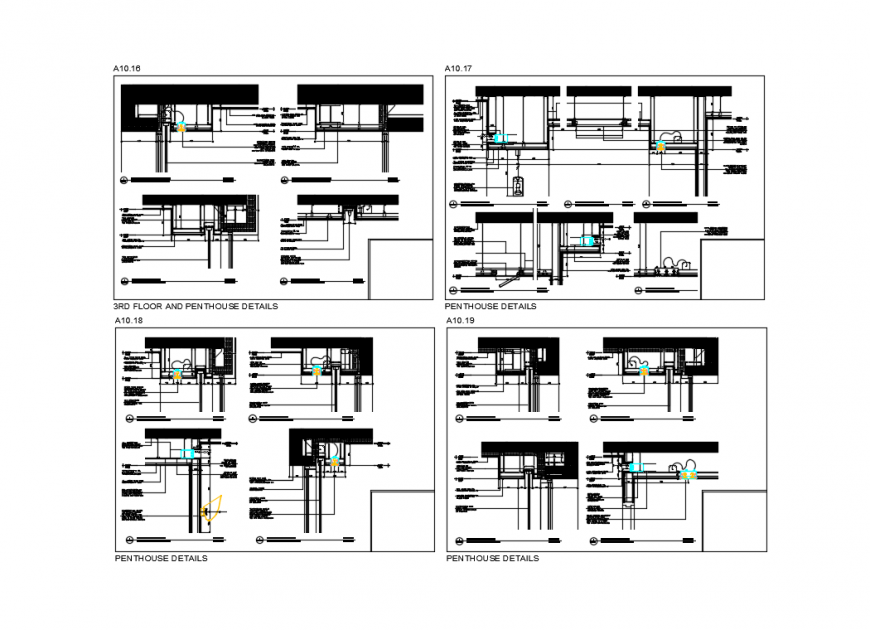

Reflected ceiling construction details of all floors of pen house dwg file


Reflected ceiling construction details of all floors of pen house dwg file

Description

Reflected ceiling construction details of all floors of pen house that includes a detailed view of 120x30cm granite wall panel, on ventilated mounting system, exterior waterproof halogen wall mounted light fixture high intensity led, demco modular see ceiling plan and spec , corp iluminat  de exterior  rezistent, exterior finish 3cm& insulation system efis 12cm, exterior finish 3cm& insulation system efis 12cm and much more of ceiling details.




File Type: DWG File ID: 137698
