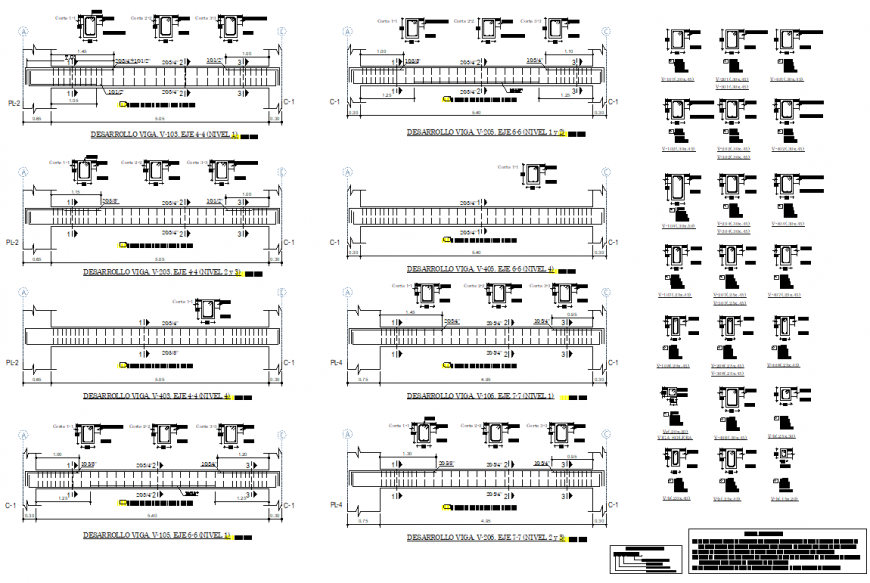

Section of Beam and column plan layout file, centerline plan detail, dimension detail, naming detail, hidden lien detail, column section detail, specification detail, leveling detail, section lien detail, etc.
