House floors structure and constructive details with brick wall and foundation dwg file


Description

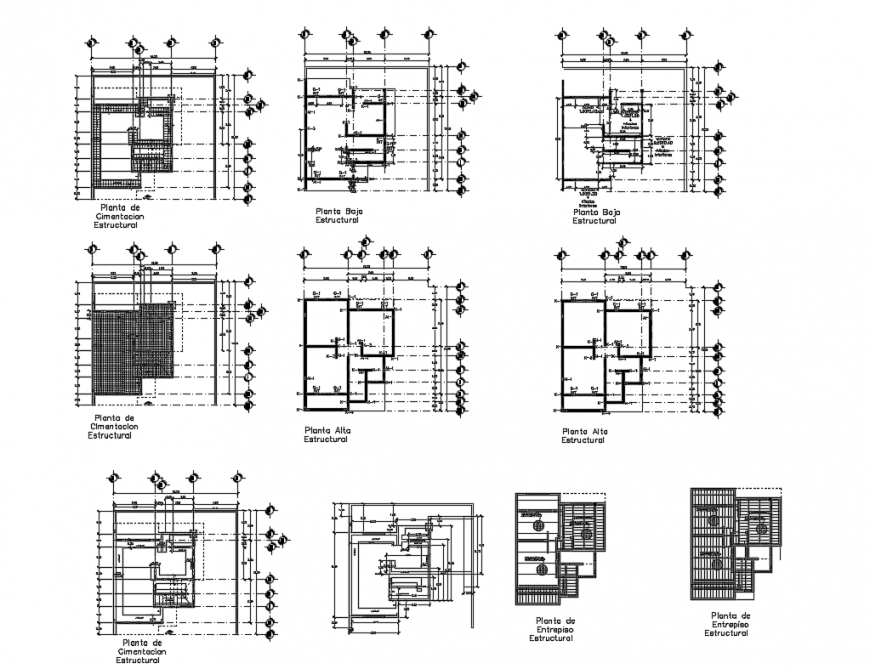

House floors structure and constructive details with brick wall and foundation that includes a detailed view of structural foundation plant, structural ground floor, structural high plant, foundation plan, structure details, floor construction, beam construction, floor wise structure and constructive details with memory of materials, footings details, staircase construction and sectional details, steps details, dimensions, column view, beam construction, covers closure type  and , soil  burried wall closure type  and , exterior solera, holes, interior partition, granite veneer of the country with steel supports and much more of house structure details.




File Type: DWG File ID: 133541

Uploaded by:


Eiz Luna
New-Zealand
