Wall construction reinforcement details of building dwg file


Wall construction reinforcement details of building dwg file

Description

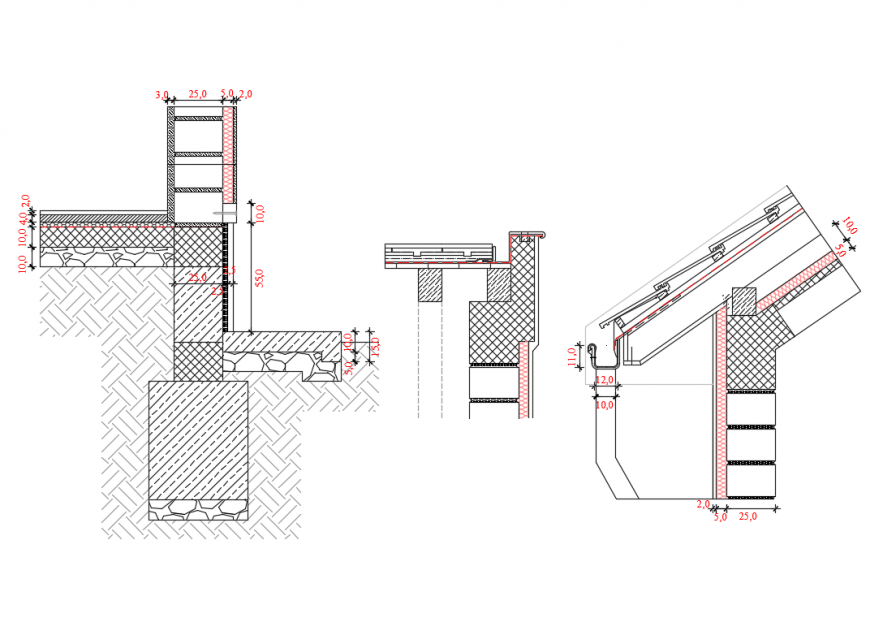

Wall construction details of building that includes a detailed view of Reinforced concrete parapet,  Stuffed with  tezontle, average thickness, Stuck with cement-sand mortar prop, Waterproofing based on prefabricated membrane, Wall concrete hollow block smooth finish, based on granitic  acrylic resins, Hollow block wall heavy type of cm, common finish, joined with sand cement mortar with horizontal reinforcement and drowned castles and much more of constructive details.




File Type: DWG File ID: 133504

Uploaded by:


profile Eiz Luna
New-Zealand
