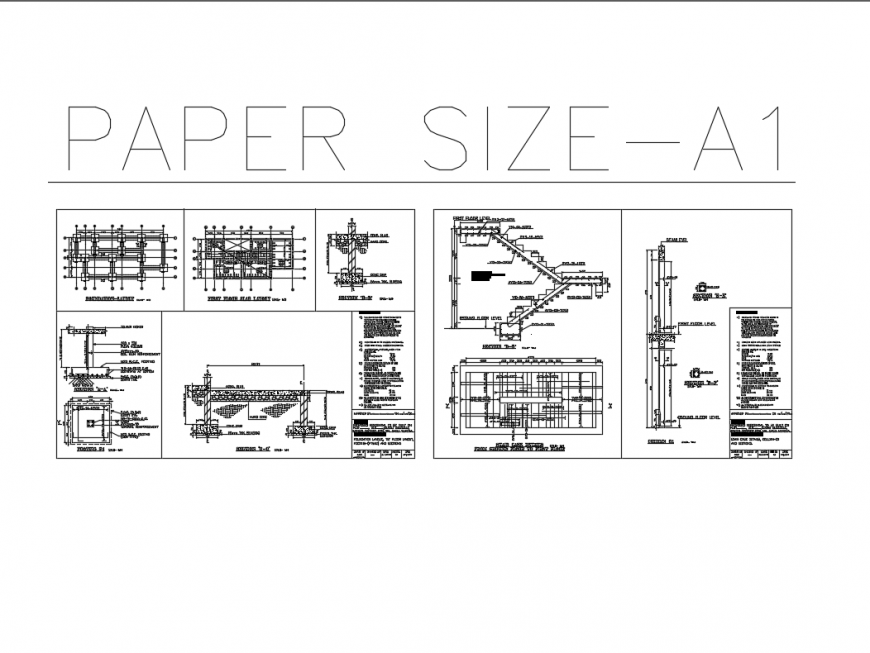

Two level building constructive structure with stairways, column and beam dwg file


Description

Two level building constructive structure with stairways, column and beam that includes a detailed view of foundation plan, structure details, floor construction, beam construction, floor wise structure and constructive details with memory of materials, footings details, staircase construction and sectional details, steps details, dimensions, column view, beam construction, covers closure type 1 and 2, soil  burried wall closure type 1 and 2, exterior solera, holes, interior partition, granite veneer of the country with steel supports and much more of building construction details.




File Type: DWG File ID: 132949

Uploaded by:


Eiz Luna
New-Zealand
