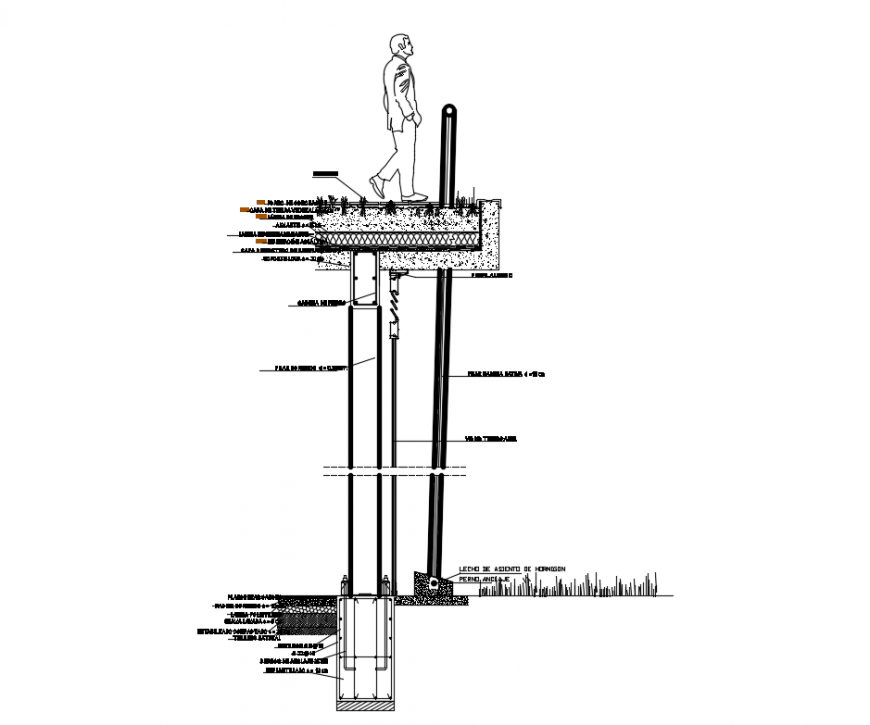

Building fixture constructive sectional details with reinforcement dwg file


Building fixture constructive sectional details with reinforcement dwg file

Description

Building fixture constructive sectional details with reinforcement Reinforced concrete parapet f'c = 250 kg / cm, Stuffed with 10cm tezontle, average thickness, Stuck with cement-sand mortar prop. 1: 5, Waterproofing based on prefabricated membrane, Wall concrete hollow block 15x20x40 smooth finish, based on granyltec acrylic resins, and much more of construction details.




File Type: DWG File ID: 132611
