Ponton bridge elevation, section and constructive structure details dwg file


Ponton bridge elevation, section and constructive structure details dwg file

Description

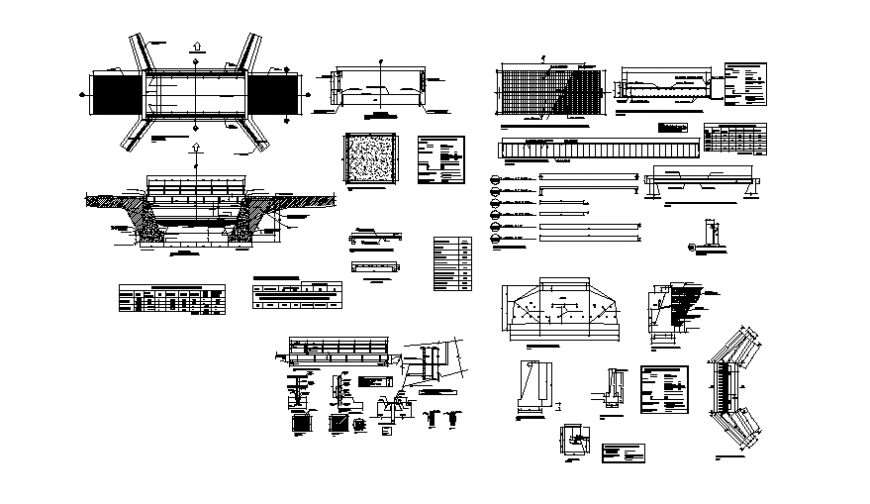

Ponton bridge elevation, section and constructive structure details that includes a detailed view of plant of the board and ponton footboards, plant distribution of steel losa ponton (light = 5.00 m.), transversal section of steel distribution (l = 5.00 m.), elevation distribution of longitudinal steel ponton (light = 10.00 m.), detail of the sardinel beam, elevation of typical footprints, longitundinal section, armor in the approximation slab, bridges relations, metallic railing - elevation typical section and much more of bridge details.




File Type: DWG File ID: 125386

Uploaded by:


profile Eiz Luna
New-Zealand
