Roofing structure CAD construction detail elevation 2d view layout file


Roofing structure CAD construction detail elevation 2d view layout file

Description

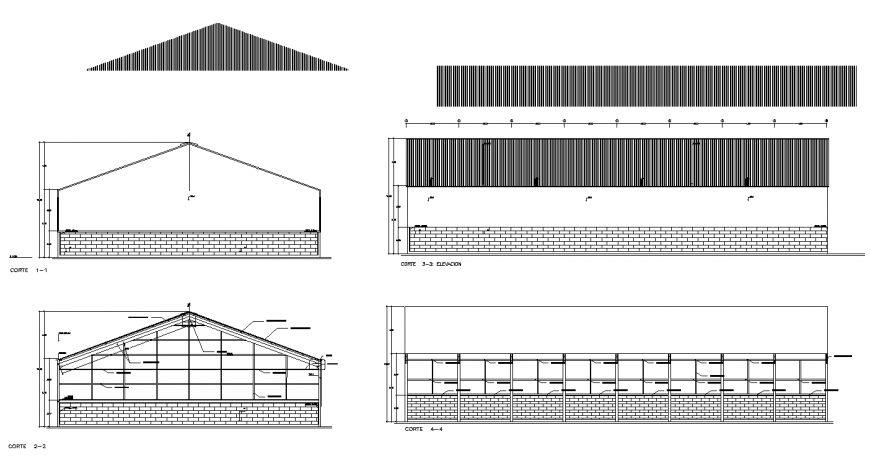

Roofing structure detail elevation 2d view layout file, brick masonry wall detail, dimension detail, section 1-1 detail, roof span detail, struts detail, principal rafter detail, nut bolt required for joints and connection detail, section 2-2 detail, section 3-3 detail, section 4-4 detail, hatching detail, main and sag tie detail, etc




File Type: DWG File ID: 122707

Uploaded by:


profile Eiz Luna
New-Zealand
